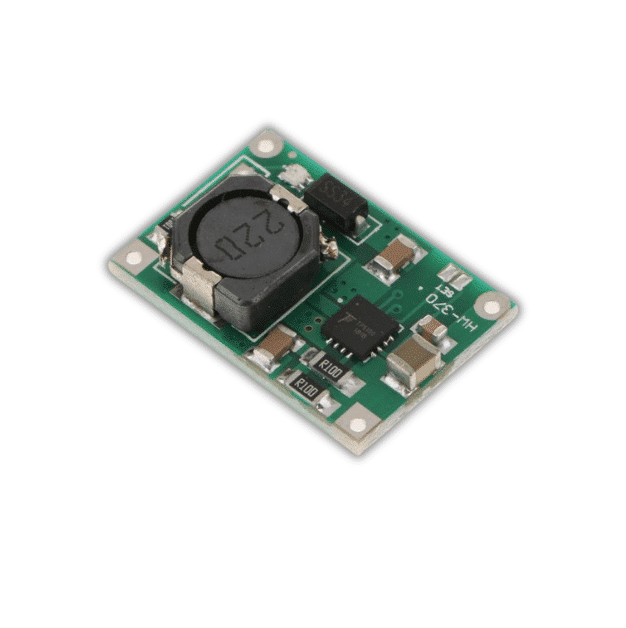

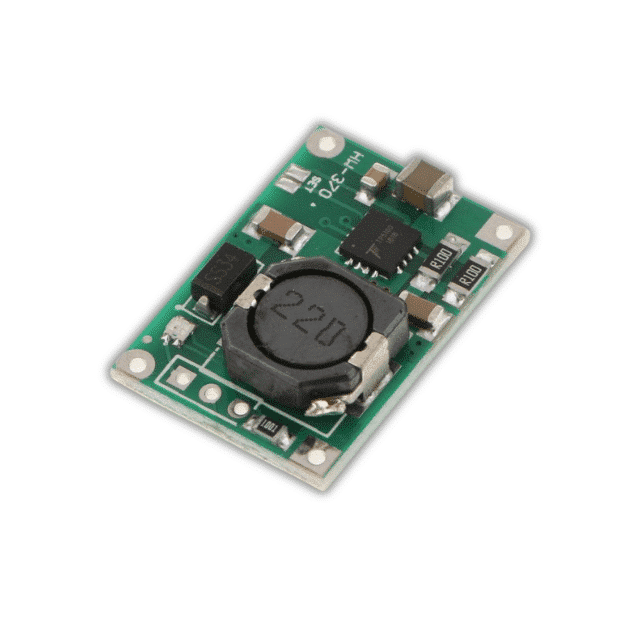

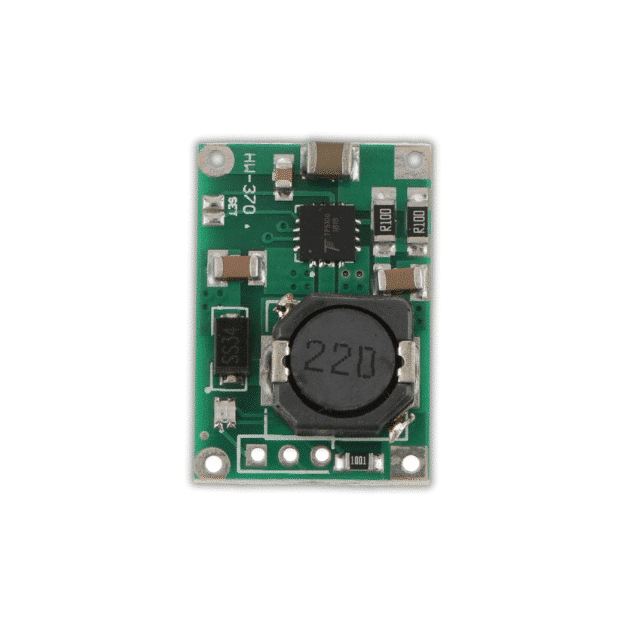

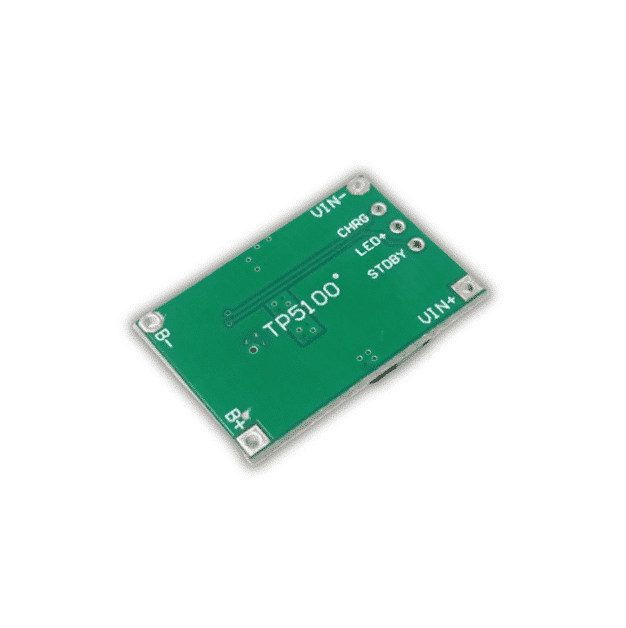

TP5100 2A 4.2v 8.4v Dual One/Two Lithium Battery Charge Management Board
50+ in stock
TP5100 Lithium Battery Charging Module supports both single (4.2V) and dual-cell (8.4V) Li-ion batteries with up to 2A fast charging. Ideal for DIY electronics, power banks, robotics, and portable devices. Features efficient switching design, adjustable charge current, and built-in safety protections.
₵22.00
50+ in stock
The TP5100 4.2V / 8.4V Lithium Battery Charging Board is a high-efficiency charge management module designed for safely charging single-cell (1S) or dual-cell (2S) lithium-ion batteries. Powered by a switching-mode charger IC, it delivers stable, fast, and efficient charging up to 2A, making it ideal for modern electronics projects.
Unlike basic linear chargers, the TP5100 uses a high-frequency DC-DC architecture, reducing heat generation and improving efficiency—especially useful when charging from higher input voltages.
This module supports the complete lithium battery charging cycle, including pre-charge, constant-current (CC), and constant-voltage (CV) stages, ensuring battery longevity and safety. On-board indicator LEDs provide clear charging and full-charge status.
Key Features
-
Supports 1S (4.2V) and 2S (8.4V) lithium-ion batteries
-
Up to 2A charging current (adjustable via resistor)
-
Wide DC input voltage range (5V–15V)
-
High-efficiency switch-mode charging design
-
Intelligent CC/CV charging algorithm
-
Built-in protections: over-current, over-temperature, reverse polarity
-
On-board charging status LEDs
-
Compact PCB – ideal for embedded and portable projects
Applications
-
DIY electronics projects
-
Power banks & battery packs
-
Robotics & automation systems
-
IoT devices
-
Portable tools & gadgets
-
Arduino / ESP32 / Raspberry Pi battery solutions
Package Includes
-
1 × TP5100 4.2v 8.4v Single Double Lithium Battery Charge Management Liion Battery Compatible 2A Charging Board
