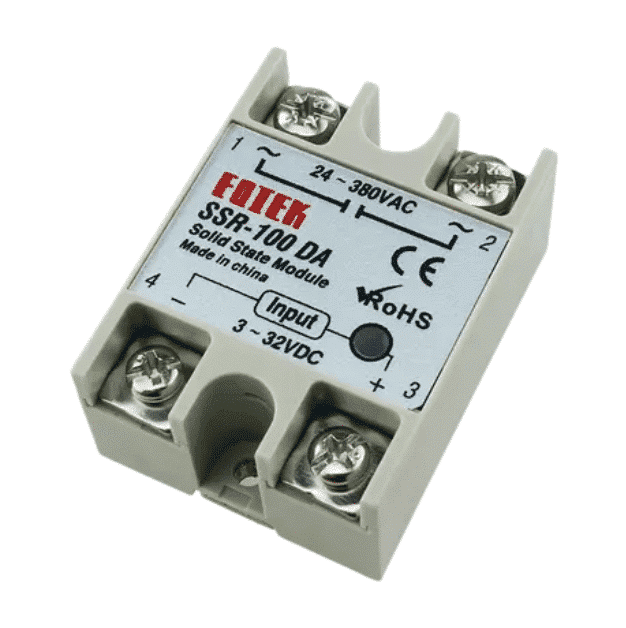

SSR‑100DA Solid State Relay (100A, DC Control → AC Load)
33 in stock
Effortlessly switch powerful AC loads up to 100 A using the SSR‑100DA Solid State Relay. This module offers silent, durable, and heat-resistant switching with a DC input signal—paired with zero-cross switching and LED status feedback, it’s an excellent choice for industrial and home automation applications.
₵119.00
33 in stock
The SSR‑100DA is a robust, single-phase solid state relay perfect for heavy-duty switching tasks. It activates with a safe 3–32 V DC control signal and manages AC loads from 24 to 480 V, handling currents up to 100 A. The zero-cross switching reduces electrical noise and minimizes wear, while the LED indicator clearly shows activation. Its sturdy panel-mount design with impact resistance makes it ideal for industrial automation, CNC equipment, heating elements, motors, and more.
Technical Specifications
| Feature | Specification |
|---|---|
| Input (Control) | 3–32 V DC<br>Trigger current: ~12 mA<br>Operate voltage: ~2.8 V, Release: ~1.5 V |
| Output Load Voltage Range | 24–480 V AC (some variants: 24–380 V) |
| Maximum Load Current | 100 A AC |
| Leakage Current (Off-State) | ~2 mA |
| Voltage Drop (On-State) | ~1.5 V |
| Switching | Zero-cross type — reduces EMI and inrush currents |
| LED Indicator | Yes — shows relay activation |
| Dielectric Strength | ~4,000 V input-to-output isolation; ≥100 MΩ insulation @ 500 VDC |
| Response Time | Approx. 10 ms |
| Dimensions | ~57.4 × 44.8 × 28 mm; Weight: ~135 g |
What’s in the Box
-
1 × SSR‑100DA Solid State Relay with screw terminals and removable protective cover.
Key Benefits
-
High Current Handling (100 A) for demanding industrial or large-scale applications
-
Silent & Durable — no mechanical wear or noise during operation
-
Stable, Safe Switching — zero-cross detection minimizes electrical disturbances
-
Visual Feedback via LED indicator
-
Easy to Install — compact, panel-mount design with high isolation safety
Based on 0 reviews
Only logged in customers who have purchased this product may leave a review.
Related products
-
Discrete & SMD components
10KΩ Variable Resistor
Preset 10K Ω (ohm) (Variable Resistor) Cermet preset is a compact variable resistor and pcb mountable with 3 terminal pins. The voltage between the terminals varies as the preset is rotated. Variable resistors are used for variating voltage as per the need in a circuit. The outer two pins are connected to Vcc and 0V, and center pin outputs a variable voltage between 0v and Vcc as the rotary cermet is rotated.
SKU: 2545 -
Discrete & SMD components
680uF 50v Electrolytic Capacitors (Pack of 10)
Electrolytic capacitors are polarized capacitors whose anode (+) is made of a metal that forms an insulating oxide layer through anodization. This oxide layer acts as the dielectric of the electrolytic capacitor. A non-solid or solid electrolyte covers the surface of this oxide layer, serving in principle as the second electrode (cathode) (-) of the capacitor. Electrolytic capacitors are typically used most in applications such as audio amplifiers of all types (hi-fi to mobile phones) and in power supply circuits
SKU: 2745 -
Discrete & SMD components

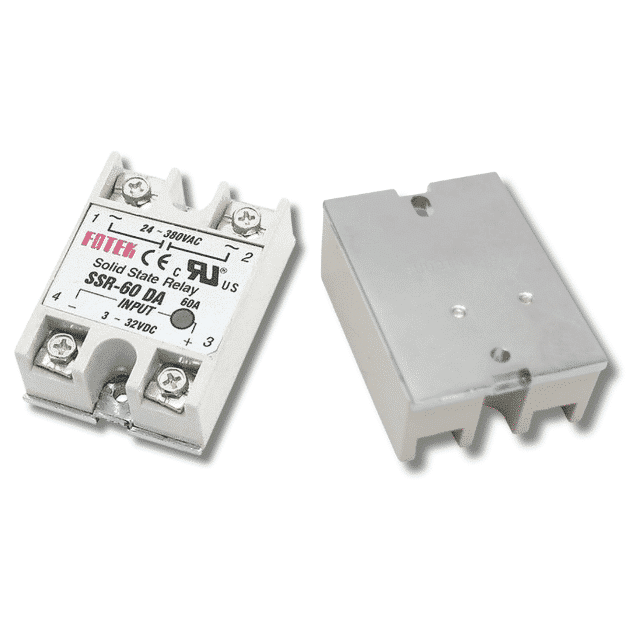

SSR‑60DA Solid State Relay (60 A, DC Control → AC Load)
