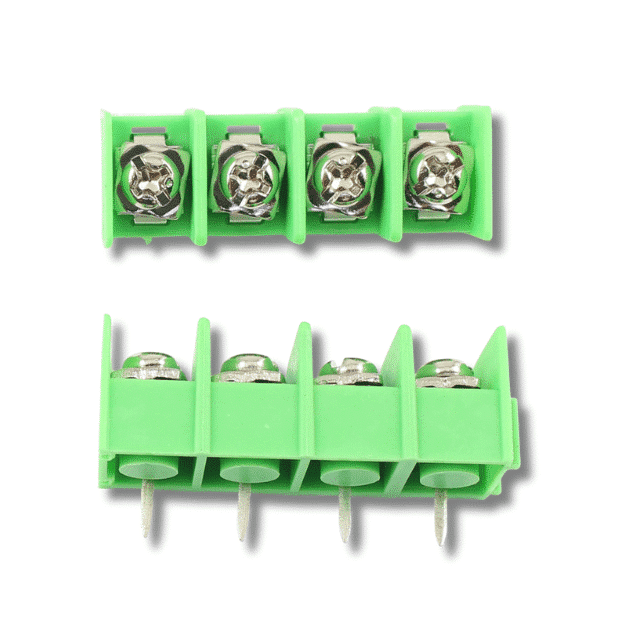

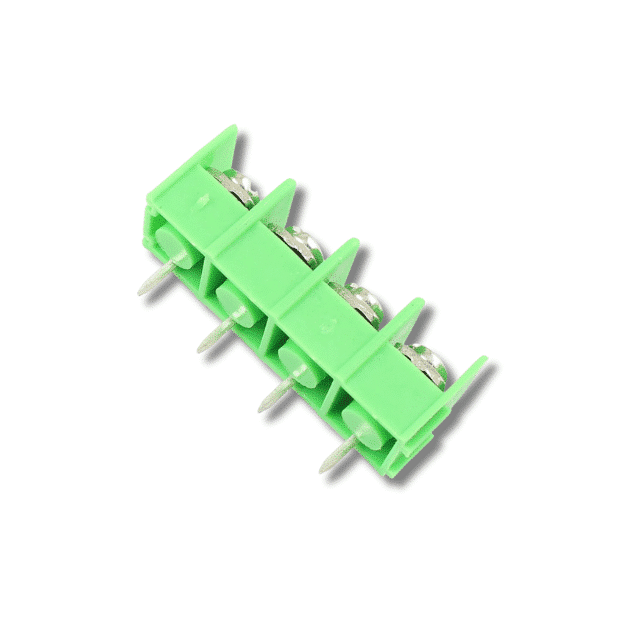

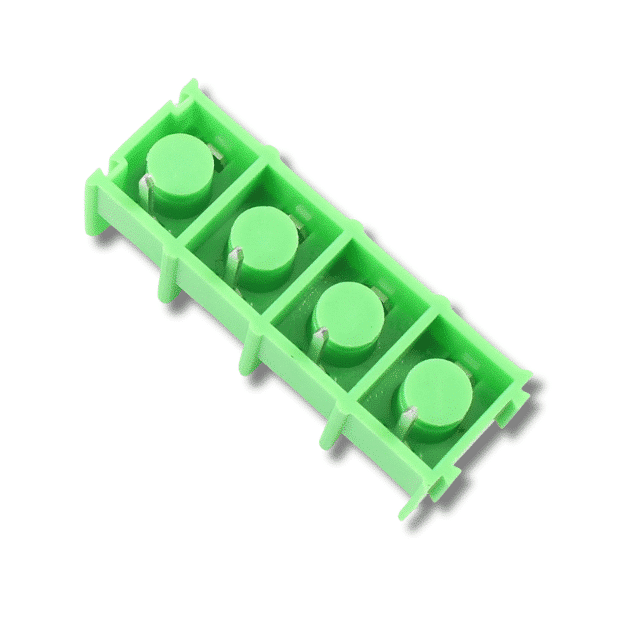

KF7.62 / KF7620 4-Pin Barrier Terminal Block (Green)

Description

The KF7.62 / KF7620 4-Pin Barrier Terminal Block is a durable and reliable connector designed for secure high-current PCB connections. With its 7.62 mm pitch and screw-type clamping system, it ensures strong mechanical stability and excellent electrical contact.

This 4-pin version allows multiple connections in a compact form factor, ideal for power supply modules, industrial automation, CNC controllers, and electronic projects. Built with flame-retardant PA66 housing and brass nickel-plated contacts, it is resistant to heat and mechanical stress, ensuring long-term performance.

For larger configurations, multiple blocks can be combined or spliced together.

Technical Specifications

• Model: KF7.62 / KF7620

• Connector Type: Barrier Terminal Block

• Number of Pins: 4P

• Pitch: 7.62 mm

• Rated Voltage: 300V AC/DC (typical)

• Rated Current: Up to 20A (depending on wire gauge)

• Wire Size Range: AWG 12 – 22

• Connection Method: Screw Clamp / Barrier Style

• Mounting: Through-hole, PCB mount

• Housing Material: Flame-retardant PA66

• Contact Material: Brass, nickel-plated

• Color: Green

Package Includes

• 1 × KF7.62 / KF7620 4-Pin Barrier Terminal Block (Green)
