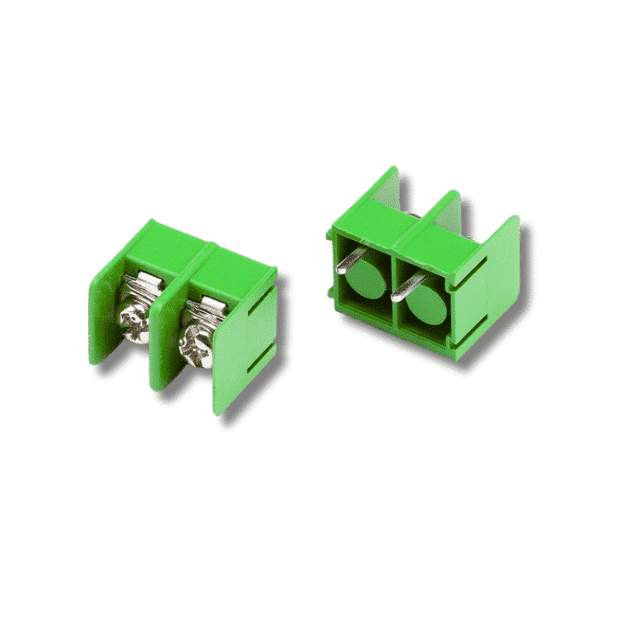

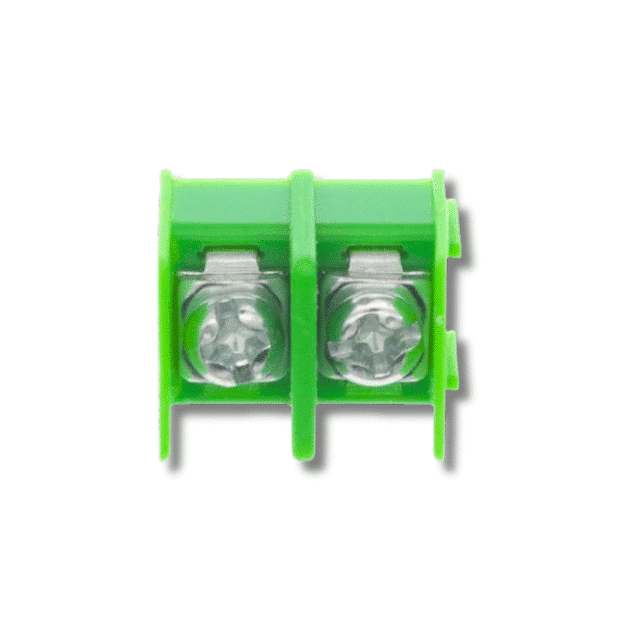

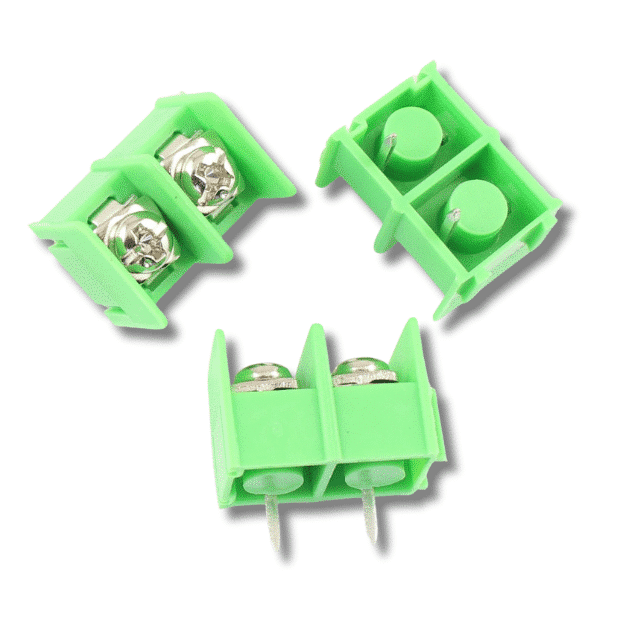

KF7.62 / KF7620 2-Pin Barrier Terminal Block (Green)

Description

The KF7.62 / KF7620 2-Pin Barrier Terminal Block is designed for secure, high-current PCB connections. With its 7.62 mm pitch and robust screw-clamp design, it ensures excellent electrical contact and mechanical strength, making it suitable for power supplies, control boards, industrial equipment, and automation projects.

This 2-pin version is ideal for compact wiring, but the block can be extended by combining with 3-pin or 4-pin variants when more terminals are needed. Made from flame-retardant PA66 housing with brass contacts, it provides durability and long service life in demanding environments.

Technical Specifications

• Model: KF7.62 / KF7620

• Connector Type: Barrier Terminal Block

• Number of Pins: 2P

• Pitch: 7.62 mm

• Rated Voltage: 300V AC/DC (typical)

• Rated Current: Up to 20A (depending on wire gauge)

• Wire Size Range: AWG 12 – 22

• Connection Method: Screw Clamp / Barrier Style

• Mounting: Through-hole, PCB mount

• Housing Material: Flame-retardant PA66

• Contact Material: Brass, nickel-plated

• Color: Green

Package Includes

• 1 × KF7.62 / KF7620 2-Pin Barrier Terminal Block (Green)
