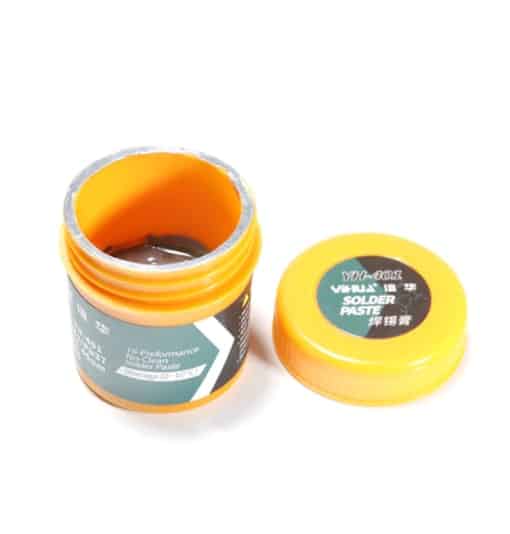

YIHUA YH-401 Soldering Paste

The preservation of the solder paste slurry must be in sealed form stored in the refrigerator of constant temperature and humidity, such as temperature, solder paste alloy powder and flux of chemical reaction, make the viscosity rise and affect its performance; Such as the temperature is too low (below zero), flux composition of rosin crystallization phenomenon will happen, in the solder paste shape is deteriorating.

The solder paste slurry from cannot be used directly out of the refrigerator, in order to avoid water vapor condensation in the air and mixed with among them, must be in the greenhouse temperature, do not use heating methods to make it back to the temperature, that would make the solder paste slurry performance degradation.

After the application of solder paste slurry, placed too long will due to solvent evaporation at room temperature environment, absorb the performance degradation due to reasons such as water, because it is necessary to shorten the waiting time into the re-flow soldering.

The use of knife and other tools before the full mixing of solder paste slurry, so that the solder paste slurry internal uniform particles, and maintain good viscosity.

Technical specification

• Model: YH-401
• Alloy: Sn63/Pb37
• Microns: 25-45um
• Melting Point: 183℃
• Shelf life: 12 months (0~10℃ refrigerated)
• Weight: 40g

Package Includes

1 X  YIHUA YH-401 Soldering Paste
