Ensure safe, efficient, and reliable charging for your lead-acid solar storage batteries with the XY-L10A Charge Controller Module. Designed to support 12V to 60V battery systems, this compact yet powerful module offers automatic charging and disconnection, preventing overcharge and prolonging battery life. Ideal for DIY solar systems, backup power storage, and off-grid applications, the XY-L10A provides precise control and real-time monitoring of charging parameters via an intuitive digital display.
Key Features
-
Wide Voltage Range: Supports 6V to 60V battery systems (common for 12V/24V/48V setups)
-
High Current Handling: Supports up to 10A charging current
-
Automatic Control: Automatically turns the charger ON/OFF based on user-set voltage thresholds
-
Digital Display: Real-time voltage monitoring and status indicators
-
User Configurable: Set upper and lower voltage thresholds for customized operation
-
Memory Function: Retains settings even after power-off
-
Protection Features: Over-voltage, under-voltage, and reverse polarity protection
Technical Specifications
Parameter | Value |
---|---|
Model | XY-L10A |
Operating Voltage | DC 6V to 60V |
Control Current | Max. 10A |
Voltage Accuracy | ±0.1V |
Load Type | Lead-acid battery charging |
Display Type | 3-digit 7-segment LED display |
Operating Temperature | -40°C to +85°C |
Dimensions | 82mm × 58mm × 18mm (L×W×H) |
Mounting Holes | Standard M3 |
Package Includes
-

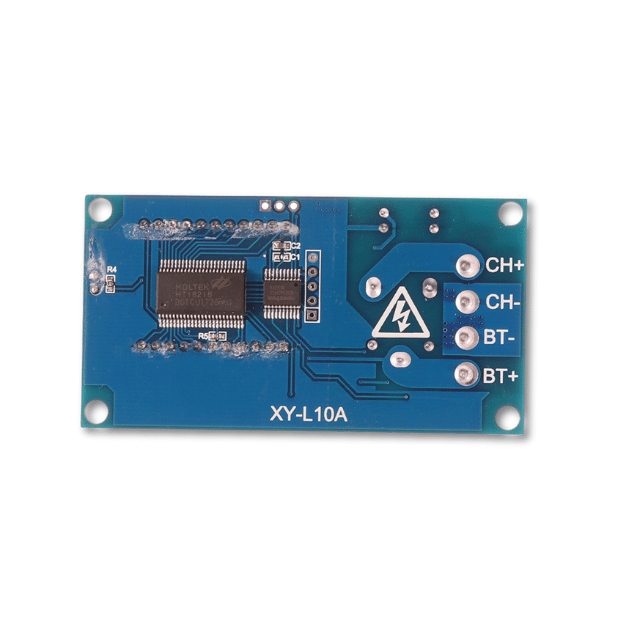

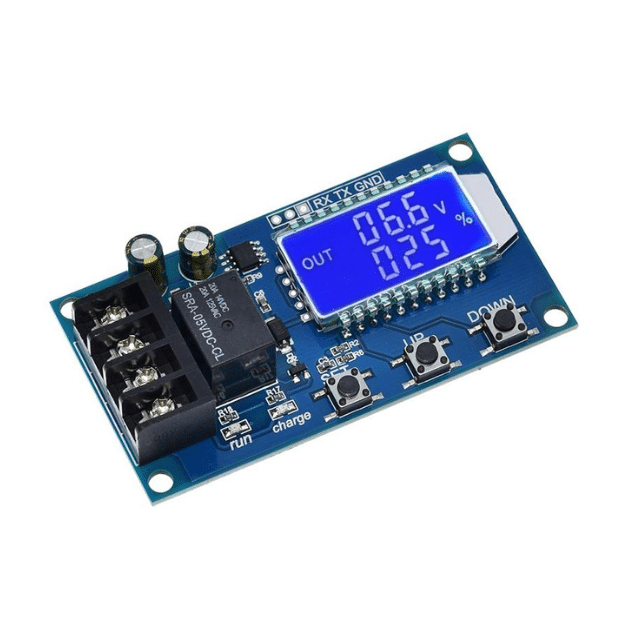

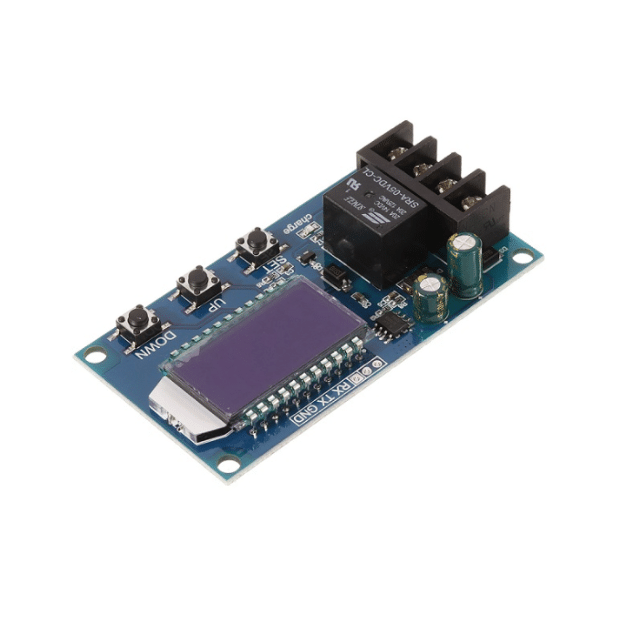

1 × XY-L10A 10A Lead-acid Solar Charge Controller Module
