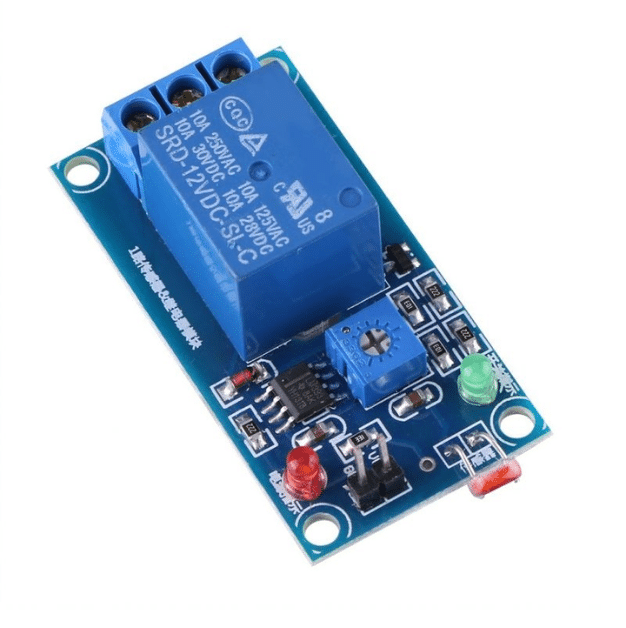

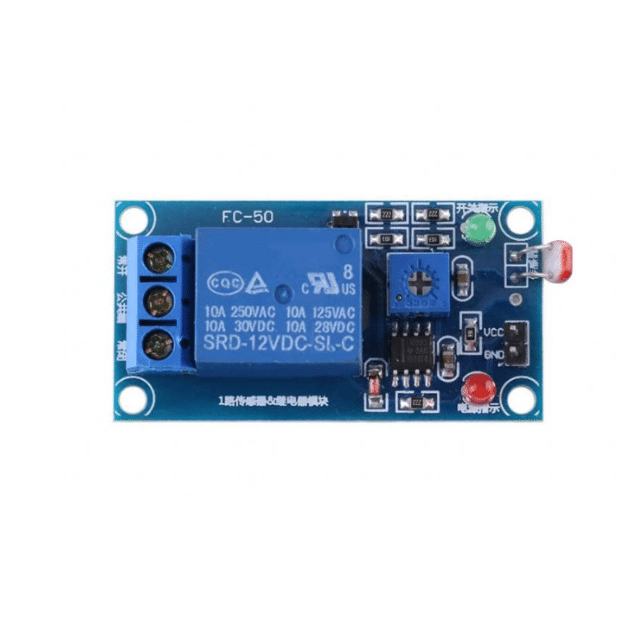

The DC 12V Light Control Switch Module with a built-in photoresistor (LDR) is a smart relay module that automatically switches devices on or off based on ambient light levels. Ideal for energy-saving applications such as street lights, garden lamps, or solar-powered systems, this module activates a connected load when it gets dark and deactivates it during daylight.
Simple to use and compatible with various loads, the module offers plug-and-play functionality for automation projects, hobby electronics, and lighting control systems.
Key Features
-
Automatic Light Detection: Uses a photoresistor (LDR) to detect ambient brightness
-
Relay Output: Controls AC or DC loads automatically based on light levels
-
High Sensitivity: Adjustable detection threshold via onboard potentiometer
-
LED Indicators: Visual feedback for power and relay status
-
Isolation Design: Optocoupler isolation for improved safety and signal integrity
-
Plug-and-Play: No programming required — just connect and configure
Technical Specifications
Parameter | Value |
---|---|
Operating Voltage | DC 12V |
Relay Contact Rating | 10A @ 250VAC / 10A @ 30VDC |
Detection Type | Light-dependent (photoresistor) |
Output Type | Relay (NO/NC terminal) |
Adjustment | Sensitivity via potentiometer |
Trigger Condition | Darkness / Low light (adjustable) |
Dimensions | Approx. 50mm × 26mm × 18mm |
Package Includes
-
1 × DC 12V Light Control Switch Module with Photoresistor (Relay-Based)
