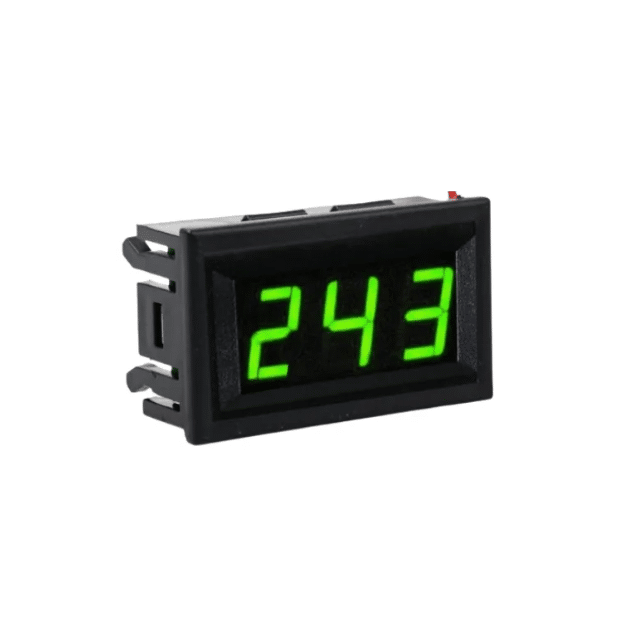

The 0.56-Inch Green LED AC Voltmeter is a compact and reliable digital panel meter designed to monitor AC voltages from 70V to 500V. With a bright green LED display and a two-wire design, it powers itself directly from the voltage it measures, making it ideal for use in household distribution boxes, industrial control panels, and generator systems.
Built for durability and easy installation, this voltmeter offers accurate real-time monitoring of mains voltage, helping prevent undervoltage and overvoltage situations.
Key Features
-
Wide Voltage Range: Measures AC voltages from 70V to 500V
-
Self-Powered Two-Wire Design: No external power supply required
-
Bright Green LED Display: Large 0.56-inch digits for high visibility
-
Compact & Durable: Fits easily into control panels or outlet boxes
-
Real-Time Monitoring: Quick response for instant voltage status
-
Reverse Polarity Protection: Prevents damage from incorrect wiring
Technical Specifications
Parameter | Value |
---|---|
Voltage Measurement Range | AC 70V – 500V |
Power Supply | Self-powered (two-wire) |
Display Type | 0.56″ 3-digit Green LED |
Accuracy | ±1.5% |
Display Refresh Rate | Approx. 500ms |
Wiring Type | Two-wire (Live and Neutral) |
Frequency Range | 45Hz – 65Hz |
Operating Temperature | -10°C to +60°C |

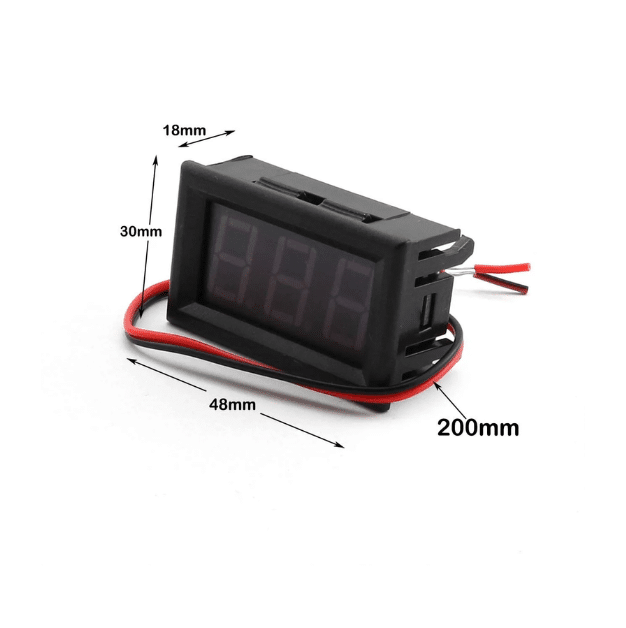

Dimensions | Approx. 48mm × 29mm × 22mm |
Package Includes
-
1 × 0.56-Inch AC Voltmeter (Green LED, 70V–500V, Two-Wire)
