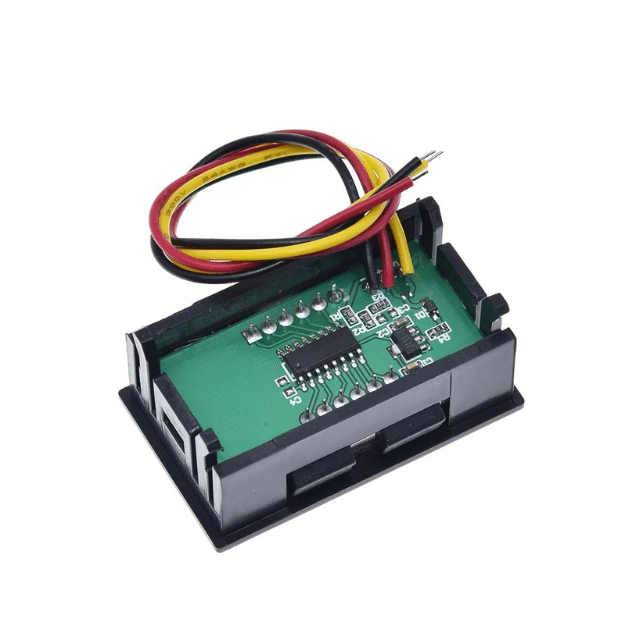

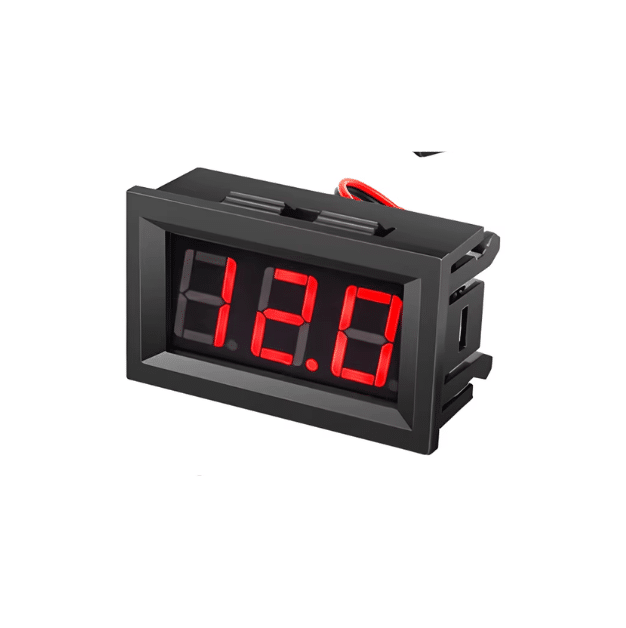

The 0.56-Inch Three-Wire DC Voltmeter is a reliable and easy-to-read voltage monitoring module, ideal for applications such as power supply diagnostics, battery monitoring, and embedded systems. With a bright red LED display and a measurement range of 0 to 30V DC, this voltmeter provides accurate real-time voltage readings for a wide range of electronic projects.
Its three-wire design allows for independent power and measurement inputs, ensuring stable operation even when monitoring voltages lower than the module’s power supply.
Key Features
-
Wide Voltage Measurement Range: Monitors DC voltages from 0V to 30V
-
Large 0.56-Inch Display: Bright red 3-digit LED for clear visibility
-
Three-Wire Design: Enables more stable readings, especially at low voltages
-
High Accuracy: ±1% measurement precision
-
Reverse Polarity Protection: Protects the module from incorrect wiring
-
Panel Mountable: Easily fits into enclosures or dashboards for permanent installations
Technical Specifications
Parameter | Value |
---|---|
Display Type | 0.56″ 3-digit Red LED |
Measurement Voltage Range | DC 0V – 30V |
Operating Voltage | DC 4.5V – 30V |
Measurement Accuracy | ±1% |
Current Consumption | < 20mA |
Refresh Rate | Approx. 200ms |
Wiring Type | 3-wire (V+, GND, and sense wire) |
Dimensions | Approx. 48mm × 29mm × 22mm |
Package Includes
-
1 × 0.56-Inch 0–30V DC Voltmeter (Three-Wire, Red LED)
