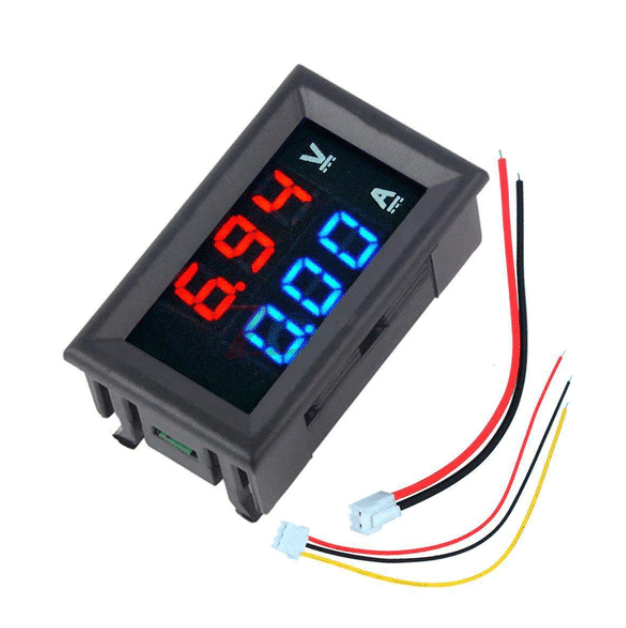

The 0.28″ Dual LED Voltmeter Ammeter is a compact, reliable, and easy-to-use digital meter for monitoring both DC voltage (0–100V) and current (0–10A) simultaneously. Featuring a bright red LED for voltage and a blue LED for current, this dual-display module is ideal for power supply testing, battery monitoring, and DIY electronics.
With its small form factor and real-time dual measurement capabilities, it’s perfect for projects where both voltage and current need to be monitored at a glance.
Key Features
-
Dual Display: Simultaneously shows voltage and current
-
High Accuracy: Measures up to 100V DC and 10A current
-
Color-Coded LEDs: Red for voltage, blue for current
-
Compact Size: Fits easily into panels or enclosures
-
Wide Application: Great for battery packs, DIY power supplies, solar systems, etc.
-
External Shunt Included: Ensures accurate current measurement
Technical Specifications
Parameter | Value |
---|---|
Voltage Measurement Range | DC 0V – 100V |
Current Measurement Range | 0A – 10A (with included shunt) |
Voltage Display Color | Red LED |
Current Display Color | Blue LED |
Display Size | 0.28 inch (3-digit 7-segment) |
Power Supply | DC 4.5V – 30V (shared or external) |
Measurement Accuracy | ±1% |

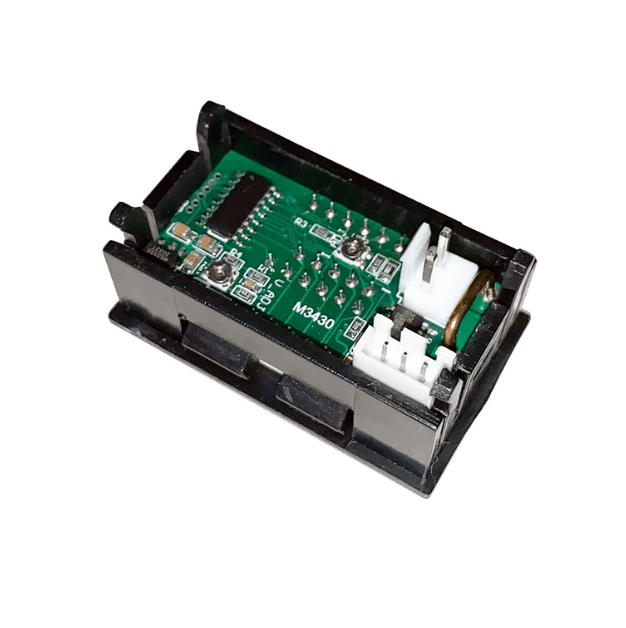

Current Detection Method | External 75mΩ shunt resistor |
Module Size | Approx. 48mm × 29mm × 21mm |
Package Includes
-
1 × 0.28″ Dual LED Voltmeter Ammeter (100V/10A)
-
1 × 75mΩ External Shunt Resistor
