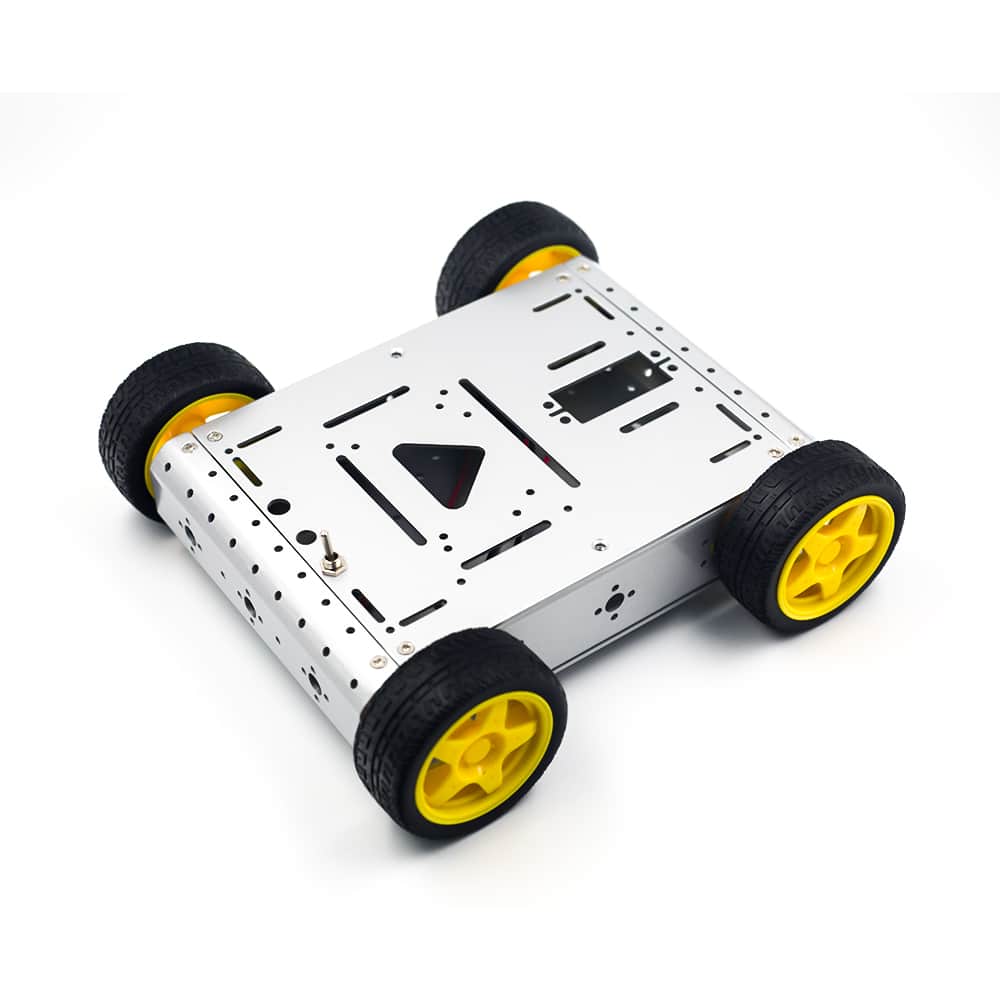

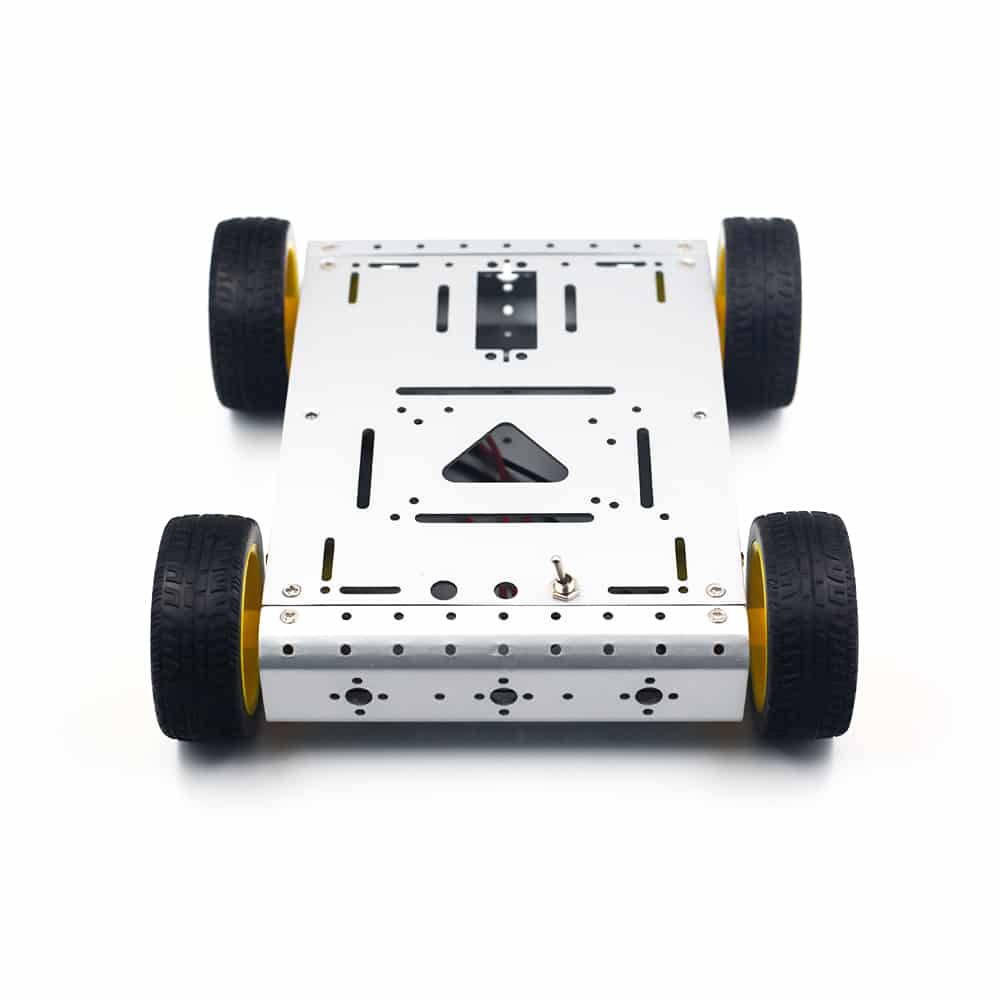

Metal Tank Robot Smart Car Chassis Sliver is easy to assemble and use Metal Tank Robot. The Chassis kit provides you with everything you need to give your robot a fast four-wheel-drive platform with plenty of room for expansion to add various sensors and controllers.
Just add your electronics – Arduino/Raspberry Pi and Motor Driver and you can start programming your robot. It offers a large space with predrilled holes for mounting sensors and electronics as per your requirement. This robot chassis lets you get your mechanical platform ready in minutes and quickly start your Metal Tank Robot building process.
Technical Specifications:
1. Drive motor gearbox reduction ratio: 1:48
2. Drive motor no load speed: 220rpm
3. Wheel diameter: 65mm
4. Wheel width: 26mm
5. Platform length: 215mm
6. Platform width: 205mm
7. Platform height: 65mm
8. Platform weight: 65mm
9. Chassis distance from the ground: 13mm

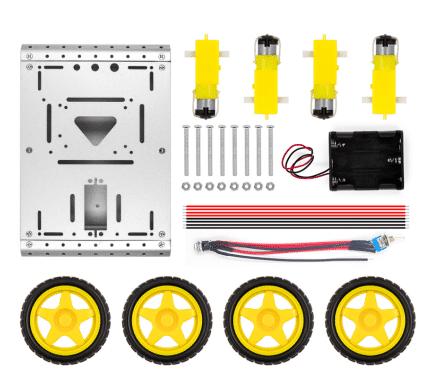

Packing List
1.4WD mobile platform full body (a total of six) x6
2. High-quality power toggle switch x1
3. High-quality metal battery charging interface x1
4. Dual output shaft DC geared motor x4
5. High-quality elastic rubber wheel x4
6. Six-section five-sided battery compartment x1
7. DC geared motor cable x8
8. Heat-shrinkable tube (10cm length can be freely cut) x1
9. White cable tie x5
