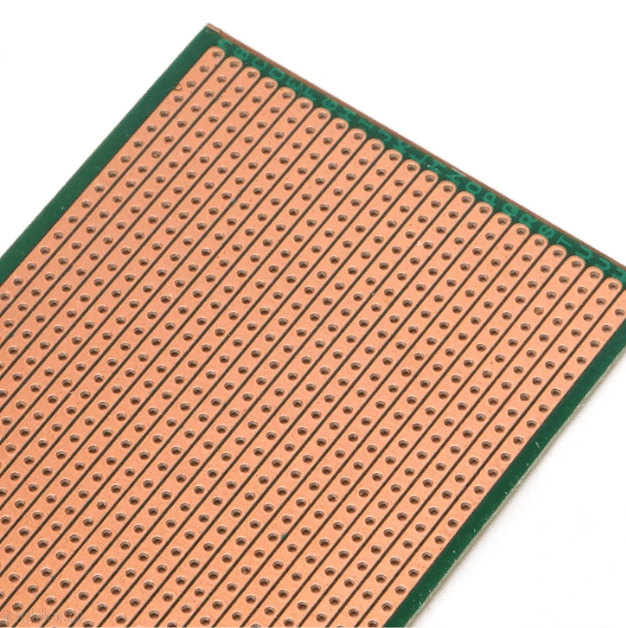

The Single Sided Stripboard PCB Board 10×24.5cm is a versatile and high-quality prototyping board designed for developing and testing electronic circuits. This stripboard features a single copper layer with parallel strips of copper tracks on one side, facilitating easy component placement and soldering. The large 10×24.5cm size provides ample space for complex and extensive circuit designs, making it ideal for both hobbyist and professional use.
Technical Specifications:
- Type: Single Sided Stripboard PCB
- Size: 10×24.5cm
- Material: Phenolic or Fiberglass substrate
- Copper Thickness: Typically 1oz (35µm)
- Color: Brown
- Drill Hole Diameter: 1.0mm (typical)
- Hole Pitch: 2.54mm (standard)
- Grid Layout: Parallel copper strips for easy component placement
- Surface Finish: Tin-plated or bare copper for easy soldering
Features:
- High-Quality Material: Made from durable phenolic or fiberglass substrate for long-lasting use.
- Single Sided: Features a single copper layer with parallel strips for straightforward soldering.
- Large Size: 10×24.5cm size is perfect for large and complex electronic projects.
- Standard Hole Pitch: 2.54mm grid layout makes it easy to place and solder components.
- Easy to Use: Ideal for prototyping and testing circuit designs.
- Versatile Application: Suitable for a wide range of electronic projects and DIY applications.
Applications:
- Prototyping and testing electronic circuits
- DIY electronics projects
- Large and complex circuit designs
- Educational and hobbyist projects
- Custom electronic devices and gadgets
Usage Tips:
- Component Placement: Arrange and place your components on the stripboard according to your circuit design. Ensure the pins align with the grid layout.
- Soldering: Use a soldering iron to solder the component leads to the copper strips. Ensure proper solder joints for reliable connections.
- Cutting Tracks: Use a track cutter or a drill bit to cut the copper strips where needed to isolate different sections of the circuit.
- Trimming Leads: After soldering, trim any excess component leads to prevent short circuits.
- Wiring: Use insulated wires to make connections between components if needed. Route the wires neatly to avoid clutter.
- Testing: Once your circuit is complete, carefully inspect all connections and test your circuit for proper functionality.
The Single Sided Stripboard PCB Board 10×24.5cm Brown is an essential tool for any electronics enthusiast, providing a reliable and easy-to-use platform for developing and testing electronic circuits, especially those that require more space and flexibility of stripboard layout.
Package includes:
- 1x Single Sided Stripboard PCB Board 10×24.5cm Brown
