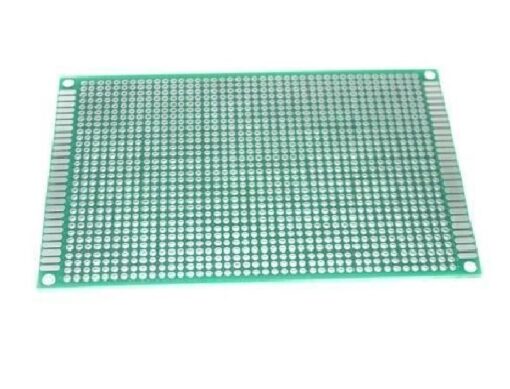

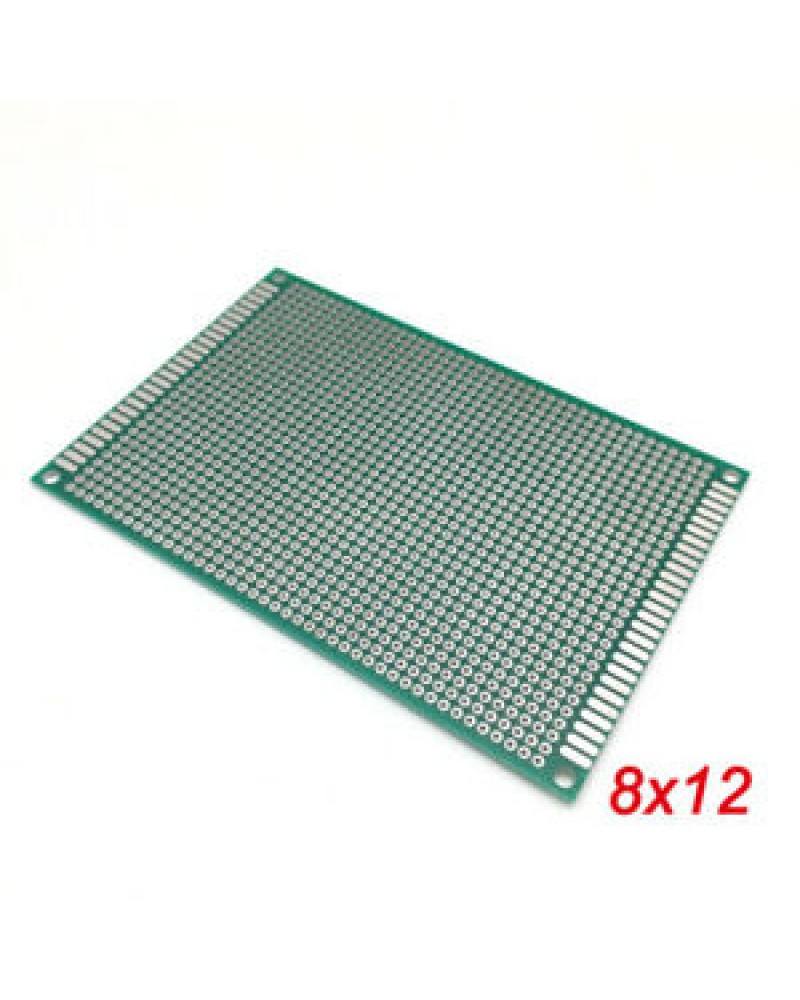

The 8×12 cm Universal Prototype PCB Board is a spacious and durable double-sided prototyping board designed for developing, testing, and assembling medium to large electronic circuits. Featuring a 2.54mm (0.1 inch) standard hole pitch, this board is fully compatible with through-hole components including resistors, capacitors, ICs, and headers.
With copper pads on both sides and plated through-holes, this board ensures strong solder joints and flexible layout options for both simple and complex electronic designs.
Key Features
-
Generous Board Area: 8cm × 12cm, ideal for larger or component-dense circuits
-
Double-Sided Copper Pads: Supports advanced circuit layout and reliable soldering
-
Standard 2.54mm Hole Pitch: Compatible with all DIP components and headers
-
Durable Construction: High-quality FR-4 or phenolic board for long-lasting use
-
Easy Soldering: Pre-tinned pads ensure strong and clean connections
-
Great for Prototyping: Perfect for student projects, prototyping, and circuit testing
Technical Specifications
Parameter | Value |
---|---|
Board Dimensions | 8cm × 12cm |
Material | FR-4 / Phenolic Resin |
Hole Pitch | 2.54mm (0.1 inch) |
Hole Diameter | Approx. 1mm |
Hole Grid | ~31 x 47 holes |
Copper Layer | Double-sided |
Board Thickness | ~1.6mm |
Package Includes
-
1 × 8×12 cm Double-Sided Universal PCB Prototype Board (2.54mm Pitch)
