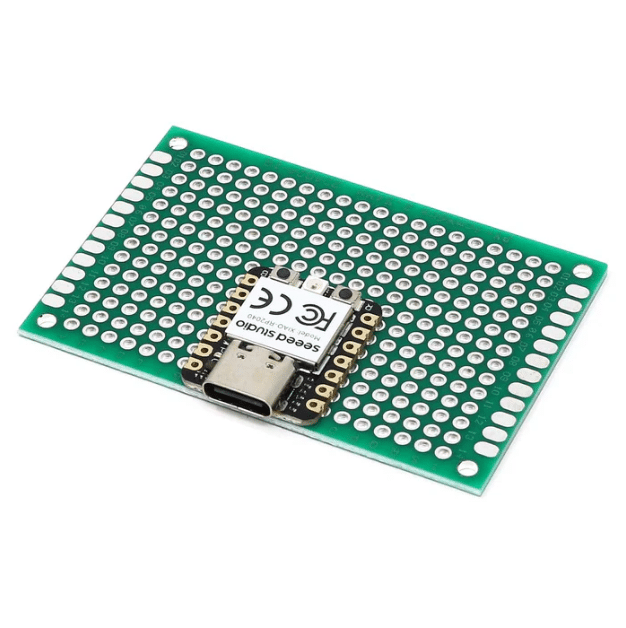

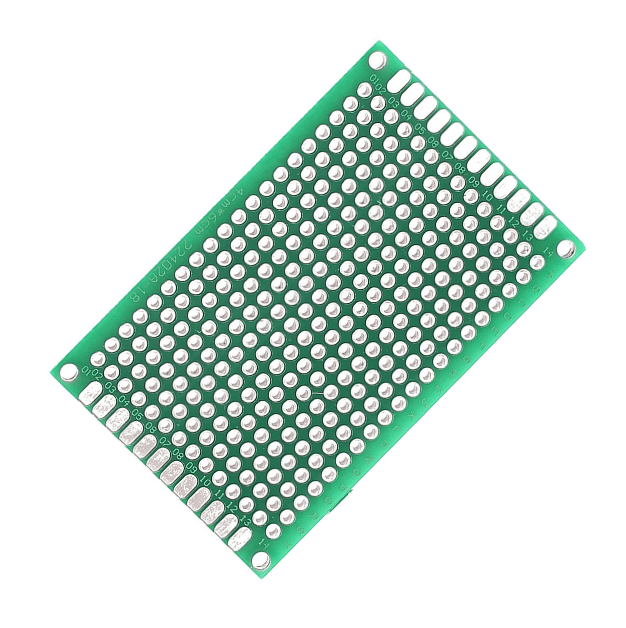

The 5×7 cm Universal Prototype PCB Board is a compact and reliable double-sided prototyping board designed for building and testing electronic circuits. Featuring a 2.54mm (0.1 inch) hole pitch, it’s fully compatible with standard through-hole components, making it ideal for breadboard-to-PCB transitions, DIY electronics, and small-scale projects.
With plated through-holes and high-quality copper pads on both sides, this board offers excellent connectivity and mechanical strength for permanent circuit builds.
Key Features
-
Compact Size: 5cm × 7cm – perfect for small to medium-sized circuits
-
Double-Sided Copper Clad: More layout flexibility and easier routing
-
Standard 2.54mm Hole Pitch: Supports DIP ICs, headers, resistors, and other through-hole components
-
Durable Material: Made of robust FR-4 or phenolic resin (based on version)
-
Easy to Solder: Pre-tinned holes allow for smooth soldering and solid joints
-
Great for Prototyping: Ideal for hobbyists, students, and engineers
Technical Specifications
Parameter | Value |
---|---|
Board Dimensions | 5cm × 7cm |
Material | FR-4 / Phenolic Resin |
Hole Pitch | 2.54mm (0.1 inch) |
Hole Diameter | Approx. 1mm |
Hole Grid | ~18 x 28 holes |
Copper Layer | Double-sided |
Board Thickness | ~1.6mm |
Package Includes
-
1 × 5×7 cm Double-Sided Universal PCB Prototype Board (2.54mm Pitch)
