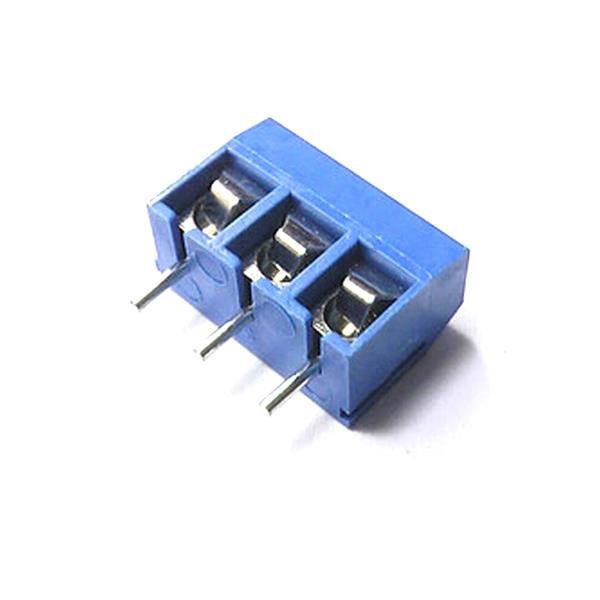

3 Pin Terminal Block

The terminal block has terminals that hold and release wires through the simple adjustment of a screw, allowing you to easily make temporary connections to a PCB. The 2-pin and 3-pin units each feature a ridge on one side and a slot on the other, which lets them slide and lock together to form arbitrarily long strips with a pitch of 3.5 mm or 5 mm. Each terminal block is available in two orientations: side-entry and top-entry.

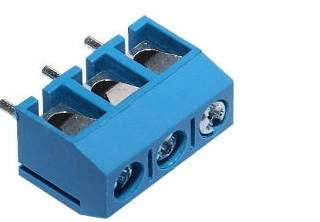

These side-entry screw terminal blocks have a pitch of 5 mm (0.197″). Each block has three terminals for the stripped ends of 22 – 14 AWG wires, and units can slide together to make longer strips. They are rated for 250 V, 16 A.

SPECIFICATIONS:

1. Voltage rating (UL/IEC): 250/250 V
2. Current rating (UL/IEC): 16/24 A
3. Contact resistance: 20 mΩ
4. Wire gauge: 22-14 AWG
5. Wire strip length: 5 mm
