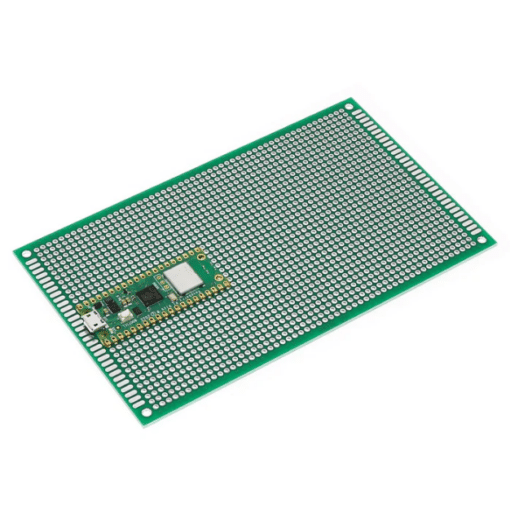

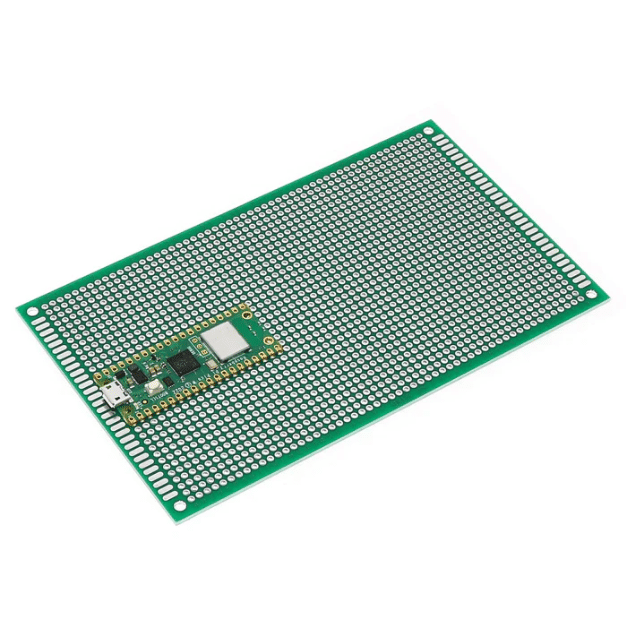

The 12×18 cm Universal Prototype PCB Board is a high-quality double-sided prototyping board designed for building and testing electronic circuits quickly and reliably. Featuring a standard 2.54mm (0.1 inch) hole pitch, it is compatible with through-hole components, headers, and IC sockets, making it ideal for both beginners and experienced makers.
Its plated through-holes ensure strong electrical connections on both sides, allowing for more versatile circuit layouts and improved mechanical stability.
Key Features
-
Large Size: 12cm × 18cm board area for complex or high-component-count projects
-
Double-Sided Copper Clad: Offers more flexibility in component placement and routing
-
Standard 2.54mm Hole Pitch: Compatible with DIP ICs, headers, and most through-hole components
-
Durable Material: Made from high-quality FR-4 fiberglass or phenolic resin base
-

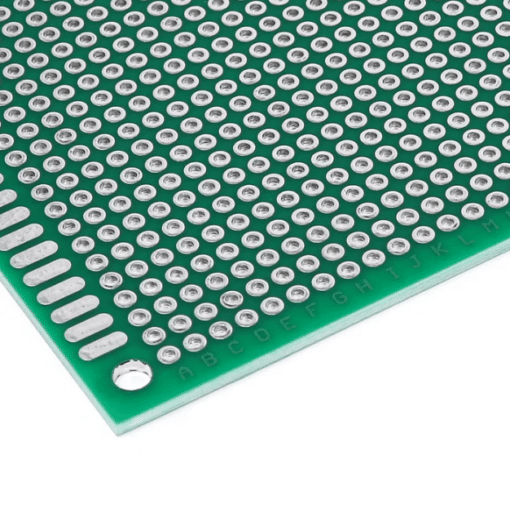

Pre-Tinned Holes: For easy soldering and long-lasting connections
-
Ideal for Prototyping: Suitable for electronic development, DIY projects, and circuit testing
Technical Specifications
Parameter | Value |
---|---|
Board Dimensions | 12cm × 18cm |
Material | FR-4 / Phenolic Resin (varies by model) |
Hole Pitch | 2.54mm (0.1 inch) |
Hole Diameter | Approx. 1mm |
Hole Count | ~85 x 130 grid (approx. 11,000 holes) |
Copper Layer | Double-sided |
Thickness | ~1.6mm |
Package Includes
-
1 × 12×18 cm Double-Sided Universal PCB Prototype Board (2.54mm Pitch)
