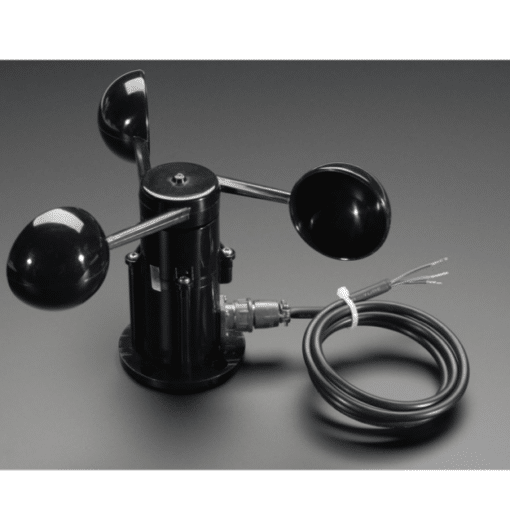

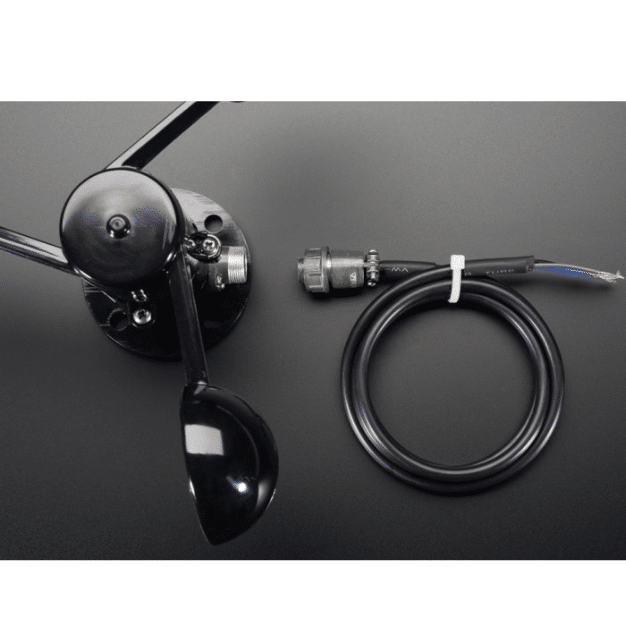

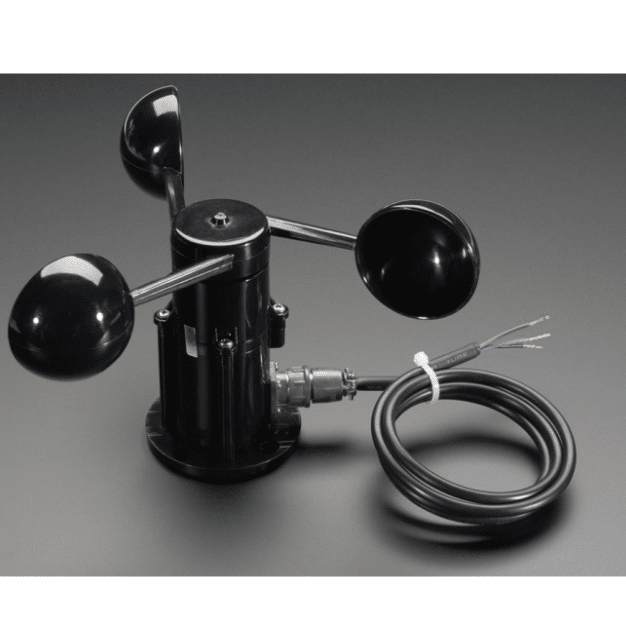

The Wind Speed Sensor Anemometer is designed to measure wind speed and provide an output signal in the form of either a 4-20mA current signal or a 0-5V voltage signal. This sensor is ideal for applications such as weather monitoring, environmental studies, industrial automation, and renewable energy systems. The sensor is available in two models: NB064 with a 4-20mA current output and NB136 with a 0-5V voltage output.
Technical Specifications:
Model NB064 (Current Output):
- Output Signal: 4-20mA
- Wind Speed Range: 0-30 m/s (customizable range available)
- Accuracy: ±0.3 m/s
- Operating Voltage: 12V to 24V DC
- Operating Temperature: -40°C to +85°C
- Material: Durable, weather-resistant materials
- Cable Length: Typically 3 meters (customizable)
- Mounting: Easy mounting with provided brackets
Model NB136 (Voltage Output):
- Output Signal: 0-5V
- Wind Speed Range: 0-30 m/s (customizable range available)
- Accuracy: ±0.3 m/s
- Operating Voltage: 12V to 24V DC
- Operating Temperature: -40°C to +85°C
- Material: Durable, weather-resistant materials
- Cable Length: Typically 3 meters (customizable)
- Mounting: Easy mounting with provided brackets
Features:
- High Accuracy: Provides precise wind speed measurements with an accuracy of ±0.3 m/s.
- Durable Construction: Made from weather-resistant materials suitable for harsh outdoor environments.
- Two Output Options: Available with either 4-20mA current output (NB064) or 0-5V voltage output (NB136) to suit different system requirements.
- Wide Operating Temperature Range: Reliable performance from -40°C to +85°C.
- Easy Installation: Comes with mounting brackets and a long cable for convenient setup.
Applications:
- Weather monitoring stations
- Environmental studies and research
- Industrial automation
- Renewable energy systems (e.g., wind turbines)
- Agricultural monitoring
- Building automation
Usage Tips:
- Connecting the Sensor:
- For the NB064 (4-20mA output), connect the current output terminals to your monitoring system or data logger.
- For the NB136 (0-5V output), connect the voltage output terminals to your monitoring system or data logger.
- Ensure the sensor is powered with a stable 12V to 24V DC supply.
- Installation:
- Mount the sensor in an open area free from obstructions to ensure accurate wind speed measurements.
- Use the provided brackets to securely attach the sensor to a mast or pole.
- Calibration:
- Follow the manufacturer’s instructions for calibrating the sensor if necessary. This might involve adjusting settings on your monitoring system to correctly interpret the output signals.
The Wind Speed Sensor Anemometer with Voltage Signal 4-20mA / 0-5V Output is a highly reliable and accurate device for measuring wind speed, suitable for a wide range of applications in environmental monitoring, industrial automation, and renewable energy systems.
