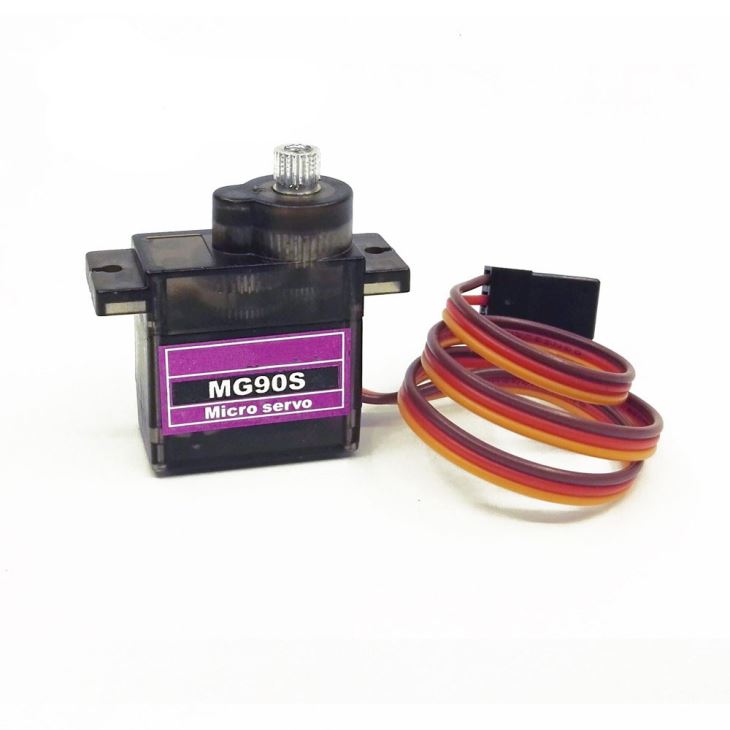

MG90S is a micro servo motor with metal gear. This small and lightweight servo comes with high output power, thus ideal for RC Airplane, Quadcopter or Robotic Arms.
MG90S Wiring Description
| Wire Number | Wire Colour | Description |
| 1 | Brown | Ground wire connected to the ground of system |
| 2 | Red | Powers the motor typically +5V is used |
| 3 | Orange | PWM signal is given in through this wire to drive the motor |
TowerPro MG-90S Features
- Operating Voltage: 4.8V to 6V (Typically 5V)
- Stall Torque: 1.8 kg/cm (4.8V)
- Max Stall Torque: 2.2 kg/cm (6V)
- Operating speed is 0.1s/60° (4.8V)
- Gear Type: Metal
- Rotation : 0°-180°
- Weight of motor : 13.4gm
- Package includes gear horns and screw
