12V G1/2 Male Thread Plastic Electric Solenoid Valve Water Air Inlet Flow Switch for 0.02(Normally Opened)

12V Solenoid Water Air Valve Switch (Normally Opened) – 1/2” controls the flow of fluid (liquid or air) and acts as a valve between high-pressure fluid! This liquid valve would make a great addition to your robotic gardening project. There are two ½” (Nominal NPT) outlets. Normally, the valve is closed. When a 12V DC supply is applied to the two terminals, the valve opens and water can push through. The flow rate is ≥1.8L/min when the water pressure is 0.02MPa; the flow rate is ≥20L/min when the water pressure is 0.8MPa.

The valve works with the solenoid coil which operates electronically with DC 12 volt supply. As it is a normally opened assembly, it close the flow of fluids as soon as it is powered ON and allow the flow when the supply voltage removed.

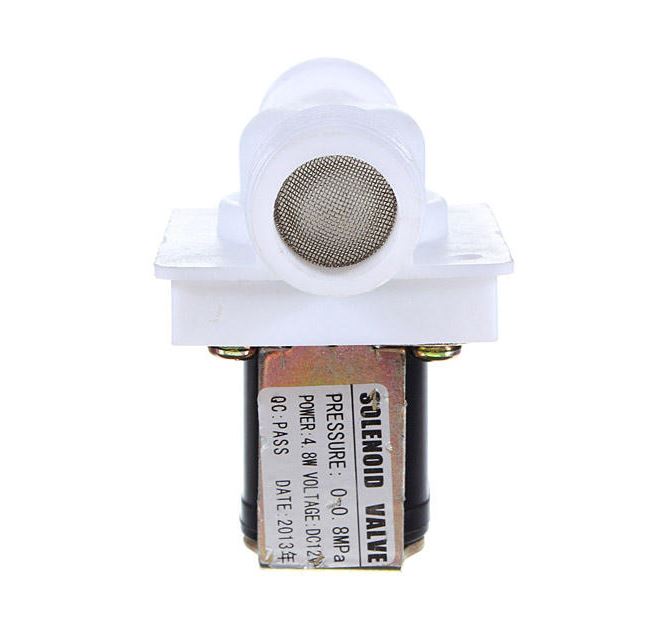

 While Connecting Valve in Flow pipeline, you need to mind the Input and Output direction of the valve. It will work only if you connect it in the right direction. (Hint: Inside the value, at one side you will find the filter this is the input side of the value)

Note: Product image may vary from the actual product.

Technical details

1. Rated Operating Voltage: 12V DC
2. Rated Current: 1A
3. Operation Mode: NO (Normally Opened)
4. Pressure: 0.02 – 0.8MPa
5. Max fluid temperature: 100°C

Features:

1. Compact and convenient.
2. Easily installed and serviced
3. Precise and reliable.
4. The installation direction can be arbitrary Angle
5. Pressure-regulating valve (steady flow valve) function similar to the water flow switch
6. Not only can it provide a steady flow, but it also prevents the dry burning.
7. Suitable for fluids like water, oil, air.

Please note it is not suitable for use with gravity fed systems

Package Includes:

1 x 12V Solenoid Water Air Valve Switch (Normally Opened) – 1/2”
