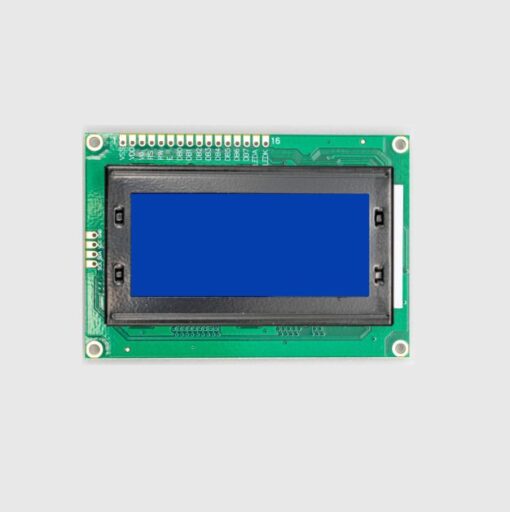

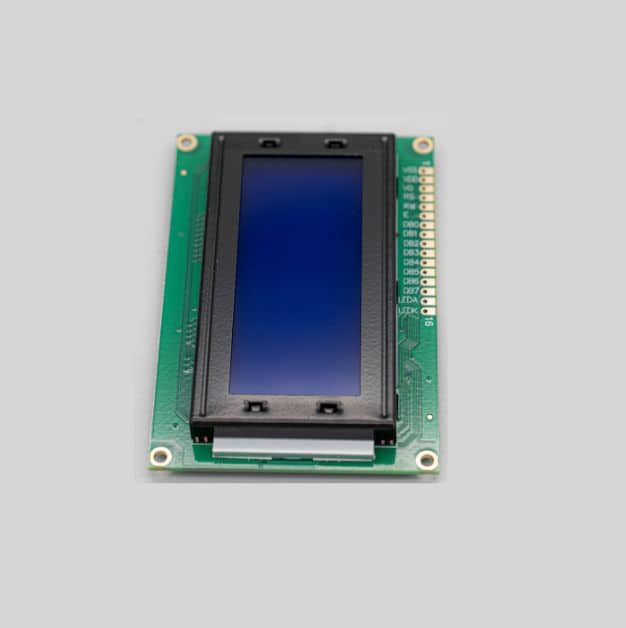

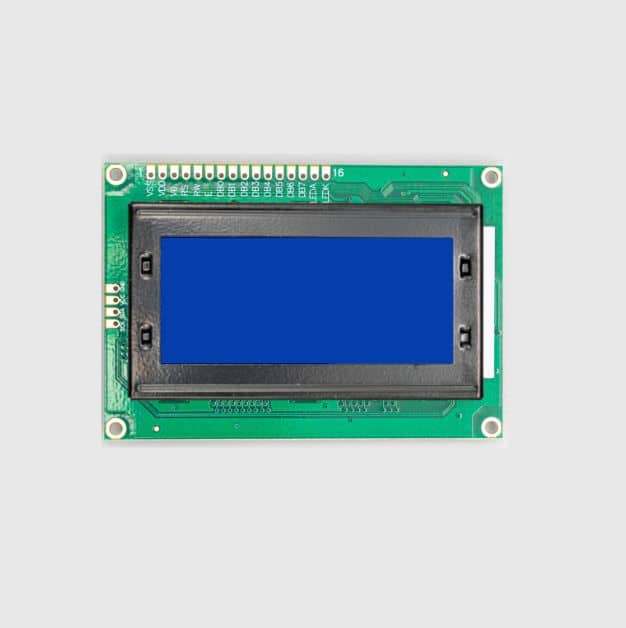

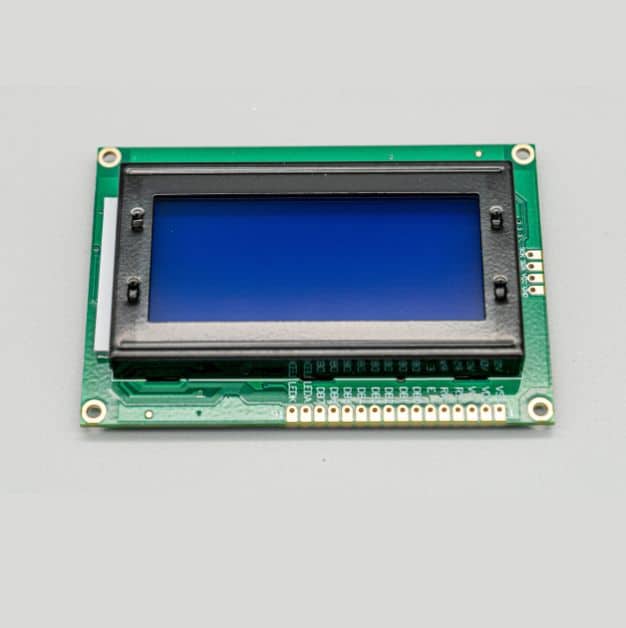

The LCD1604 (5V Blue Backlight) Display Module is a versatile and easy-to-use LCD screen designed to display 16 characters across 4 lines, making it ideal for various text-based applications. The blue backlit screen with white text provides excellent readability in a wide range of lighting conditions. This module is commonly used in projects that require clear, organized data display, such as temperature readings, status messages, or user interfaces in embedded systems, DIY electronics, and educational projects.
Key Features
- 16×4 Character Display: Displays up to 16 characters per line across 4 lines, offering ample space for text, data, or instructions.
- Blue Backlight: The blue backlit display with white text provides high contrast, making it easy to read in both low and bright light conditions.
- 5V Operating Voltage: The display operates at 5V, making it compatible with most microcontrollers, including Arduino, Raspberry Pi, and other 5V systems.
- Standard 16-Pin Interface: Uses a standard 16-pin interface, allowing for easy connection to microcontrollers and development boards.
- Adjustable Contrast: The module includes a contrast adjustment potentiometer, enabling you to fine-tune the display’s contrast for optimal readability.
- Compact Design: The module is designed to be compact, making it easy to fit into various project enclosures without taking up too much space.
- Durable Construction: Made with high-quality materials, ensuring reliability and long-term durability in a variety of applications.
Specifications
- Display Type: 16×4 character LCD
- Backlight Color: Blue with white text
- Operating Voltage: 5V DC
- Interface: Parallel interface with 16 pins (RS, RW, E, D0-D7, VCC, GND, Vo, A, K)
- Dimensions: Approximately 87mm x 60mm x 14mm
- Viewing Angle: Wide viewing angle for enhanced readability from different positions
- Mounting Holes: Standard mounting holes for easy installation
Applications
- DIY Electronics: Ideal for displaying information such as sensor readings, status updates, or user interfaces in DIY projects.
- Embedded Systems: Suitable for use in embedded systems where you need to display text-based data or instructions.
- Home Automation: Perfect for home automation systems to show data such as temperature, humidity, or system status.
- Educational Projects: Excellent for teaching electronics and programming, providing a clear and informative display for students to work with.
- Prototyping: Useful in prototyping devices where visual feedback and user interaction are required.
Benefits
- High Visibility: The blue backlight with white text offers excellent visibility, making it easy to read in various lighting conditions.
- Easy Integration: The standard 16-pin interface and compact design make it straightforward to integrate into existing projects.
- Adjustable Contrast: The built-in contrast adjustment allows for fine-tuning the display for the best possible readability.
- Reliable Performance: Durable construction ensures that the module will perform reliably over time, even in demanding applications.
- Versatility: Suitable for a wide range of applications, from DIY electronics to professional embedded systems.
Why Choose the LCD1604 (5V Blue Backlight) Display Module?
The LCD1604 (5V Blue Backlight) Display Module is a reliable and versatile component for any project that requires clear, text-based information display. Whether you’re building a DIY gadget, developing an embedded system, or working on an educational project, this display offers the readability, ease of use, and durability you need. Its compact design, adjustable contrast, and wide application range make it an excellent choice for both beginners and experienced developers.
Order your LCD1604 (5V Blue Backlight) Display Module today and enhance your projects with a clear and stylish display!
