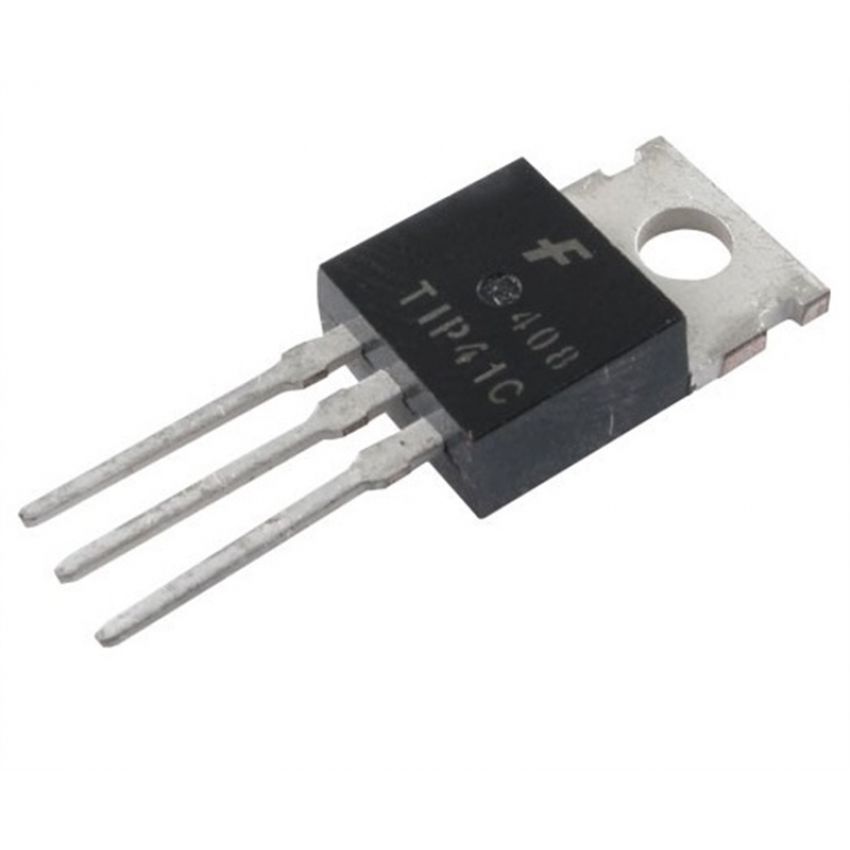

TIP41 Bipolar Power Transistor

The TIP41 is a versatile NPN bipolar junction transistor (BJT) designed for medium to high-power applications. Encased in a TO-220 package, the TIP41 is known for its excellent performance in amplification and switching tasks. Its robust design and high current handling capacity make it suitable for a wide range of applications, including audio amplification, power regulation, and motor control.

Key Features

• High Current Handling: Capable of handling currents up to 6A, making it suitable for medium to high-power applications.
• High Voltage Tolerance: Withstands collector-emitter voltages up to 100V.
• High Power Dissipation: Can dissipate up to 65W of power, ensuring reliable performance in demanding applications.
• TO-220 Package: Durable and easy-to-mount package with excellent thermal characteristics.
• Versatile Use: Suitable for both switching and amplification applications in various electronic circuits.
• Stable Performance: Provides consistent performance across a wide range of operating conditions.

Specifications

• Transistor Type: NPN
• Collector-Emitter Voltage (Vceo): 100V
• Collector-Base Voltage (Vcbo): 100V
• Emitter-Base Voltage (Vebo): 5V
• Collector Current (Ic): 6A
• Power Dissipation (Pd): 65W
• DC Current Gain (hFE): 15-75
• Package: TO-220
• Operating Temperature: -65°C to +150°C

Applications

• Audio Amplification: Ideal for use in audio amplifier circuits, providing high-quality sound amplification.
• Power Regulation: Suitable for power supply and voltage regulation circuits.
• Motor Control: Efficient in controlling motors in various applications, including robotics and automation.
• Switching Applications: Perfect for switching tasks in digital and analog circuits.
• General-Purpose Use: Versatile enough for a wide range of general-purpose electronic projects and experiments.

Benefits

• High Performance: Delivers reliable and high-performance operation in both amplification and switching applications.
• Durability: The TO-220 package ensures robust thermal dissipation and mechanical strength.
• Flexibility: Suitable for a wide range of applications, making it a valuable component for any electronics toolkit.
• Reliability: Proven performance and stability under various operating conditions.

Why Choose the TIP41 Bipolar Power Transistor?

The TIP41 NPN bipolar power transistor is a reliable, versatile, and high-performance component essential for any electronics enthusiast or professional. Its excellent performance in both switching and amplification, coupled with its high current and voltage handling capabilities, makes it a preferred choice for a multitude of applications. Whether you are designing audio amplifiers, power regulators, or motor controllers, the TIP41 offers the performance and reliability you need.

Order your TIP41 Bipolar Power Transistor today and power up your electronic designs with a trusted and efficient component!
