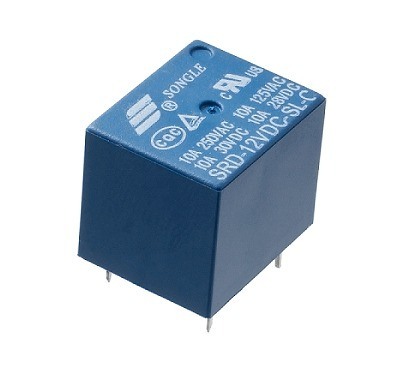

Songle SPDT 12V relay

This is a high-quality Single Pole – Double Throw (SPDT) sealed 12V Sugar Cube relays. the Relay operates from a 12V signal. the relay can control or connected directly through a transistor to a microcontroller pin or TTL signal.

Switches up to 10Amps. Rated at up to 250V

Technical Features

1. Supports any microcontroller or TTL signal. 3V and 12V supported.
2. Relay current consumption at 12V is 75mA
3. DC12V 10A Single Pole Double Throw Relay
4. DIP 5 pins
