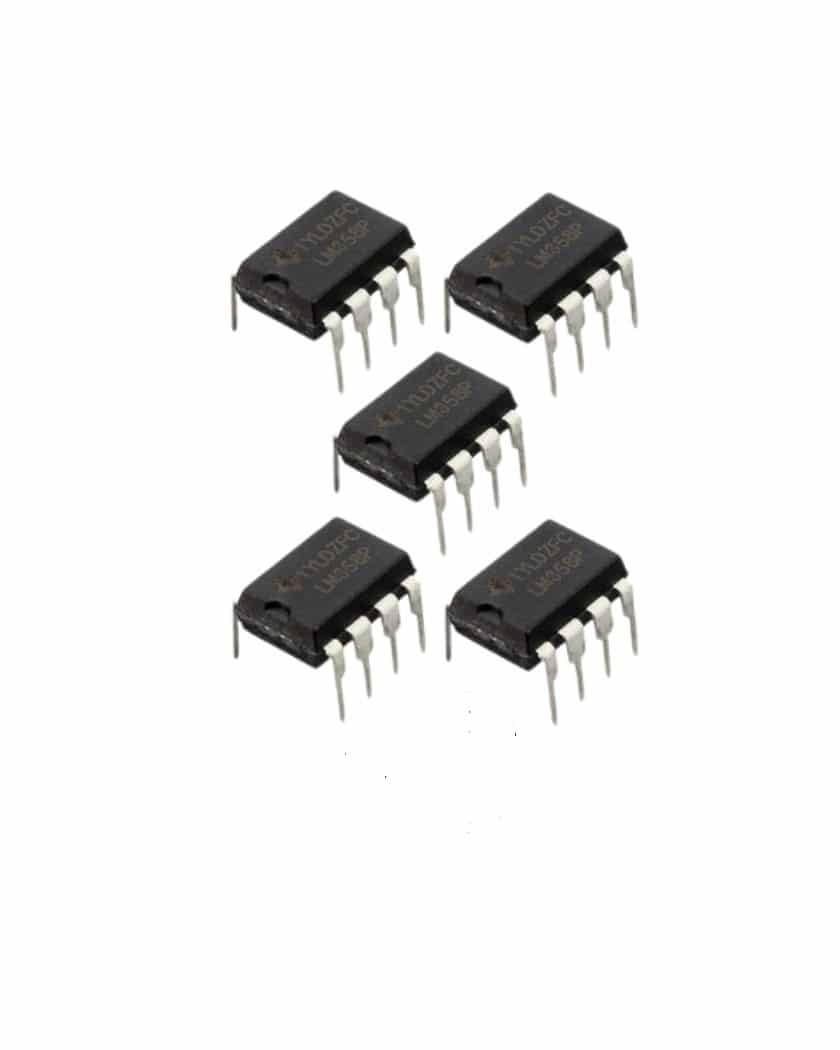

LM358 Dual OP-AMP IC 5pcs per pack

LM358 is a dual op-amp IC integrated with two op-amps powered by a common power supply. It can be considered as one-half of the LM324 Quad op-amp which contains four op-amps with a common power supply. The differential input voltage range can be equal to that of the power supply voltage. The default input offset voltage is very low which is of magnitude 2mV. The typical supply current is 500uA independent of the supply voltage range and a maximum current of 700uA. The operating temperature ranges from 0˚C to 70˚C at ambient whereas the maximum junction temperature can be up to 150˚C.

LM358 Dual Op Amp IC features and specifications

• Integrated with two Op-Amps in a single package
• Wide power supply Range

1. Singe supply – 3V to 32V
2. Dual supply – ±1.5V to ±16V

• Low Supply current – 700uA
• Single supply for two op-amps enables reliable operation
• Short circuit protected outputs
• Operating ambient temperature – 0˚C to 70˚C
• Soldering pin temperature – 260 ˚C (for 10 seconds – prescribed)
• Available packages: TO-99, CDIP, DSBGA, SOIC, PDIP,  DSBGA
