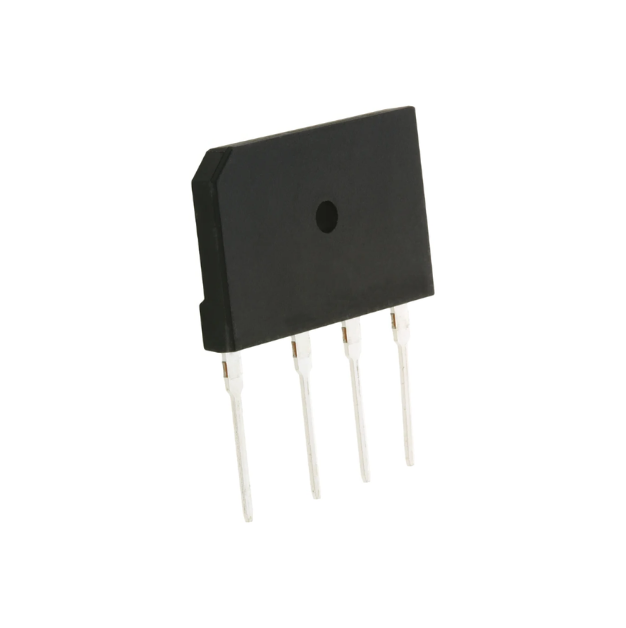

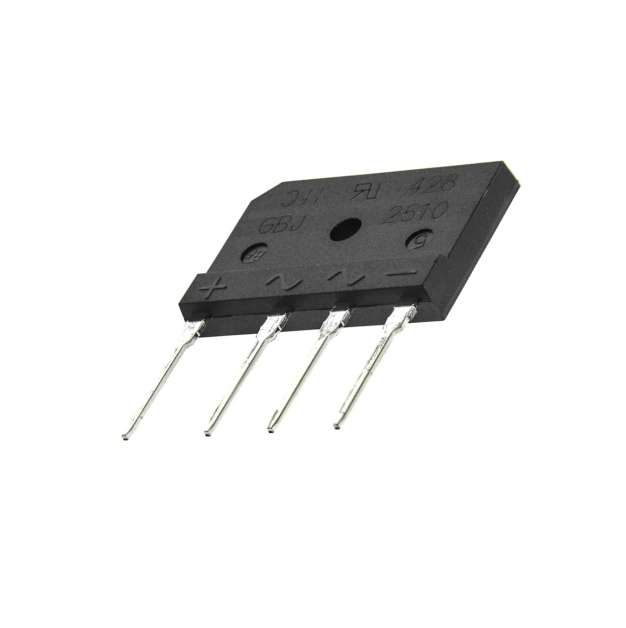

This high-power bridge rectifier is designed for reliable AC to DC conversion in demanding applications. With a maximum current capacity of 25A and voltage rating of 1000V, it’s ideal for use in power supplies, inverters, battery chargers, and other industrial or high-current electronics systems.
🔧 Features:
-
Maximum Repetitive Reverse Voltage (V<sub>RRM</sub>): 1000V
-
Maximum Average Forward Current (I<sub>F(AV)</sub>): 25A
-
Configuration: Single-phase full bridge
-
4-Pin compact case (metal body or plastic epoxy, depending on model)
-
High surge current capability
-
Low forward voltage drop
-
Easy mounting with central hole (for heat sinking)
⚡ Applications:
-
AC to DC conversion for power supplies
-
High-current battery chargers
-
Motor drivers and control circuits
-
Industrial and commercial electronics
-
Solar and inverter systems
📦 Package Includes:
-
1 x Bridge Rectifier Diode (25A, 1000V, 4-Pin)
