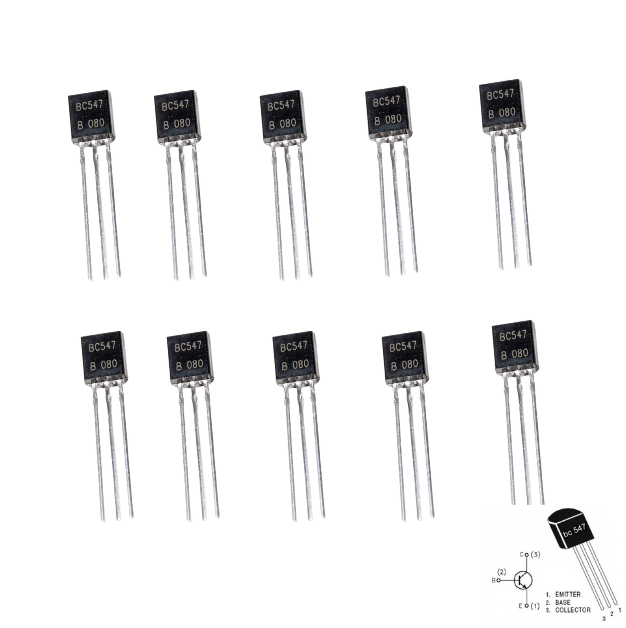

The BC547B is a versatile NPN bipolar junction transistor (BJT) commonly used in switching and amplification applications. Known for its reliability and efficiency, this transistor is suitable for a wide range of electronic circuits. Its compact TO-92 package makes it easy to integrate into your projects, whether you’re working on signal amplification, switching, or general-purpose electronic circuits.
Technical Specifications:
- Transistor Type: NPN
- Collector-Emitter Voltage (Vceo): 45V
- Collector-Base Voltage (Vcbo): 50V
- Emitter-Base Voltage (Vebo): 6V
- Collector Current (Ic): 100mA
- DC Current Gain (hFE): 110-800 (BC547B specifically falls within 200-450)
- Power Dissipation (Ptot): 500mW
- Package: TO-92
- Transition Frequency (fT): 300 MHz
- Operating Temperature Range: -55°C to +150°C
Features:
- High Gain: Offers a DC current gain range of 200-450, making it suitable for various amplification tasks.
- Low Noise: Ideal for low-noise applications and signal processing.
- Versatile Applications: Suitable for switching, signal amplification, and general-purpose use.
- Compact Design: The TO-92 package allows easy integration into PCB layouts and breadboards.
- Reliable Performance: Ensures consistent operation across a wide temperature range.
Applications:
- Signal amplification
- Switching applications
- Audio preamplifiers
- Low-noise stages in electronic circuits
- General-purpose electronic projects
- Hobby and educational projects
Enhance your electronic designs with the BC547B NPN Transistor, offering reliable performance and versatility for a wide range of applications.
