The BZX5V1 Zener Diode is a reliable and widely used component designed to regulate voltage in electronic circuits. With a nominal Zener voltage of 5.1V, this diode is ideal for providing stable reference voltages and protecting circuits from overvoltage conditions. Its compact design and robust performance make it suitable for a wide range of applications, including power supplies, voltage regulation, and circuit protection.
Key Features
- Zener Voltage: Nominal Zener voltage of 5.1V, providing a stable reference voltage for various applications.
- Low Power Consumption: Designed for low-power applications with a typical power dissipation of 500mW.
- High Reliability: Manufactured with high-quality materials to ensure consistent performance and longevity.
- Compact Size: Small form factor allows for easy integration into space-constrained designs.
- Protection Capability: Ideal for protecting circuits from overvoltage by clamping the voltage to a safe level.
- Wide Application Range: Suitable for use in a variety of electronic circuits, including power supplies, voltage regulators, and signal processing.
Specifications
- Zener Voltage (Vz): 5.1V ±5%
- Power Dissipation (Pd): 500mW
- Maximum Reverse Current (Ir): Typically 5µA at 1V reverse voltage
- Package Type: DO-35 or SMD (depending on specific part)
- Operating Temperature Range: -65°C to +150°C
- Tolerance: ±5% of Zener voltage
Applications
- Voltage Regulation: Provides a stable reference voltage in power supply circuits.
- Circuit Protection: Protects sensitive components from overvoltage conditions by clamping the voltage.
- Voltage Reference: Used in various circuits as a reference voltage source for accurate measurements and control.
- Signal Processing: Ideal for clipping and clamping in signal processing circuits.
- Power Supplies: Commonly used in regulated power supplies to ensure consistent output voltage.
Benefits
- Stability: Provides a stable and reliable voltage reference, essential for accurate circuit operation.
- Protection: Safeguards sensitive components from overvoltage, enhancing the durability of electronic devices.
- Versatility: Suitable for a wide range of applications, from simple voltage regulation to complex circuit protection.
- Compact Design: Small size allows for easy integration into various circuit designs, even where space is limited.
- Cost-Effective: Offers an affordable solution for voltage regulation and protection needs.
Why Choose the BZX5V1 Zener Diode?
The BZX5V1 Zener Diode is an essential component for anyone working with electronic circuits requiring stable voltage regulation and protection. Its reliable performance, coupled with its ease of use and integration, makes it a go-to choice for engineers, hobbyists, and professionals alike. Whether you are designing power supplies, protecting sensitive circuits, or creating reference voltage sources, the BZX5V1 Zener Diode provides the stability and reliability you need.
Order your BZX5V1 Zener Diode today and ensure your electronic circuits are protected and stable with this high-quality, dependable component!
Package Include

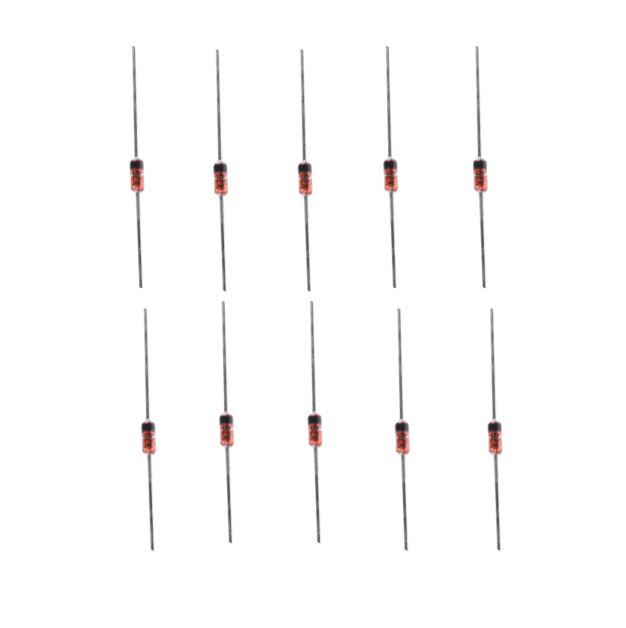

- 10pcs of 5.1Volts BZX5V1 Zener Diode
