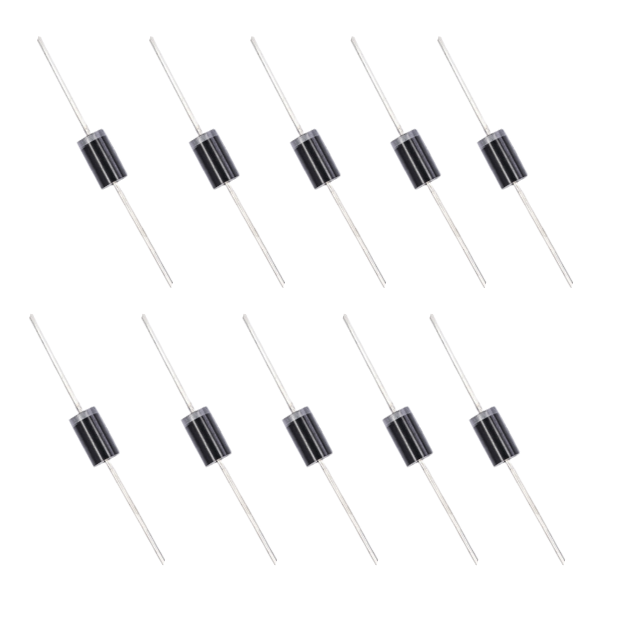

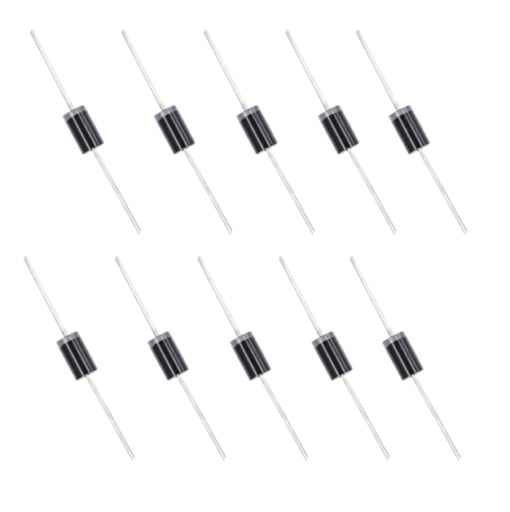

The 1N5338B Zener Diode is a high-performance, reliable component designed for voltage regulation and overvoltage protection in electronic circuits. With a nominal Zener voltage of 5.1V and a power dissipation rating of 5W, this diode is particularly well-suited for applications that require a stable voltage reference in high-power environments. Its durable construction and consistent performance make it ideal for use in power supplies, voltage regulation circuits, and industrial electronics.
Key Features
- Zener Voltage: Nominal Zener voltage of 5.1V, providing a stable and precise reference voltage for various electronic circuits.
- High Power Dissipation: Rated for 5W power dissipation, allowing it to handle higher power levels and offering robust protection.
- Low Leakage Current: Ensures efficiency by minimizing unwanted power loss in your circuits.
- Durable Construction: Made with high-quality materials to ensure long-term reliability and consistent performance, even in demanding environments.
- Standard Package: DO-201 package for easy integration into various electronic designs.
- Wide Application Range: Suitable for use in voltage regulation, circuit protection, and other applications requiring precise voltage control.
Specifications
- Zener Voltage (Vz): 5.1V ±5%
- Power Dissipation (Pd): 5W
- Maximum Reverse Current (Ir): Typically 5µA at 1V reverse voltage
- Zener Impedance (Zzt): Typically 2Ω at Izt
- Package Type: DO-201
- Operating Temperature Range: -65°C to +200°C
Applications
- Voltage Regulation: Provides a stable 5.1V reference voltage in power supply circuits, ensuring consistent performance of connected components.
- Circuit Protection: Protects sensitive electronic components from overvoltage by clamping the voltage to a safe 5.1V level.
- Voltage Reference: Used as a reliable 5.1V reference voltage source in various circuits, supporting accurate measurements and control.
- Power Supplies: Commonly used in regulated power supplies to maintain a consistent output voltage, preventing potential damage to sensitive devices.
- Signal Processing: Ideal for clipping and clamping in signal processing circuits, ensuring signals remain within safe voltage levels.
Benefits
- Stability: Provides a stable and reliable 5.1V reference voltage, essential for accurate and consistent circuit operation.
- Protection: Safeguards your circuits from overvoltage conditions, enhancing the longevity and durability of your electronic devices.
- High Power Handling: Capable of dissipating up to 5W of power, making it suitable for applications requiring higher power levels.
- Versatility: Suitable for a broad range of applications, from simple voltage regulation tasks to complex circuit protection in advanced electronic systems.
- Compact Design: The DO-201 package allows for seamless integration into a variety of circuit designs, even in space-constrained environments.
Why Choose the 1N5338B Zener Diode?
The 1N5338B Zener Diode is a dependable and versatile component that provides essential voltage regulation and protection in electronic circuits. Its high power dissipation capacity, combined with its stable Zener voltage and low leakage current, makes it a preferred choice for engineers, hobbyists, and professionals alike. Whether you’re working on power supplies, voltage regulation, or protecting sensitive circuitry, the 1N5338B Zener Diode offers the performance and reliability you need.
Order your 1N5338B Zener Diode today and ensure your electronic circuits are protected and stabilized with this high-quality, dependable component!
Package Includes:
