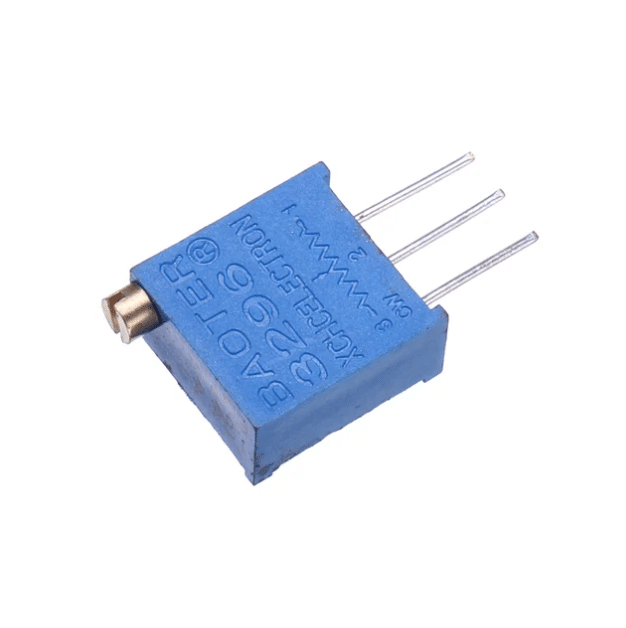

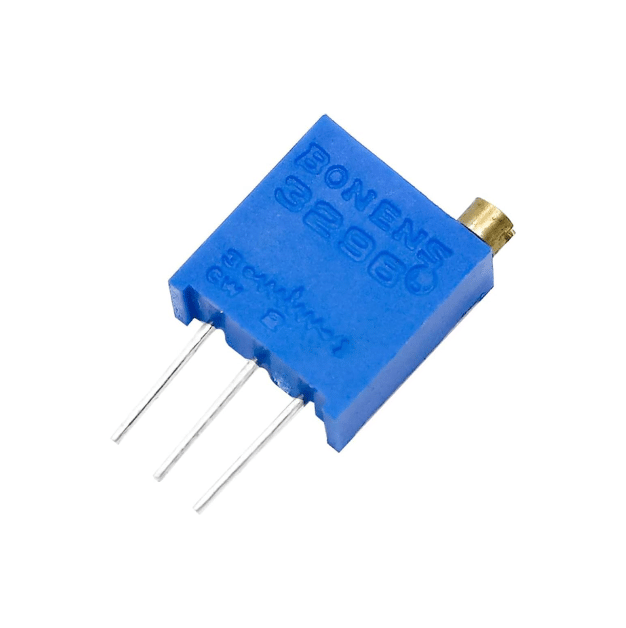

A general-purpose, board-mountable preset, also called by other names like potentiometers, trimpots, etc., is basically just a variable resistor. Trimmer/Trimpots are high-accuracy variable resistors and PCB-mountable with 3 terminal pins. The voltage between the terminals varies as the trimpot is rotated. Variable resistors are used for varying voltage as needed in a circuit. The outer two pins are connected to Vcc and 0V, and the center pin outputs a variable voltage between 0V and Vcc as the rotary cermet is rotated. The potentiometer is easy to mount on a PCB and can be adjusted using a screwdriver. This potentiometer has a single turn, which can be used to preset a value.
Technical Specifications:
- Resistance Value: 10K ohms
- Turns: Up to 25 turns for precise adjustment
- Type: Multi-turn trimpot (trimmer potentiometer)
- Package Option: Through-hole (TH)
- Power Rating: 0.5W
- Tolerance: ±10%
- Adjustment Mechanism: Screw mechanism for fine control
- Temperature Coefficient: Ensures stable resistance over varying temperatures
- Applications: Ideal for tuning circuits, sensor adjustments, and equipment calibration
Upgrade your electronic projects with our high-quality 1K ohm multi-turn trimpot variable resistor and experience the difference in performance and accuracy.
Package Includes:
10K ohm multi turn trimpot variable resistor
