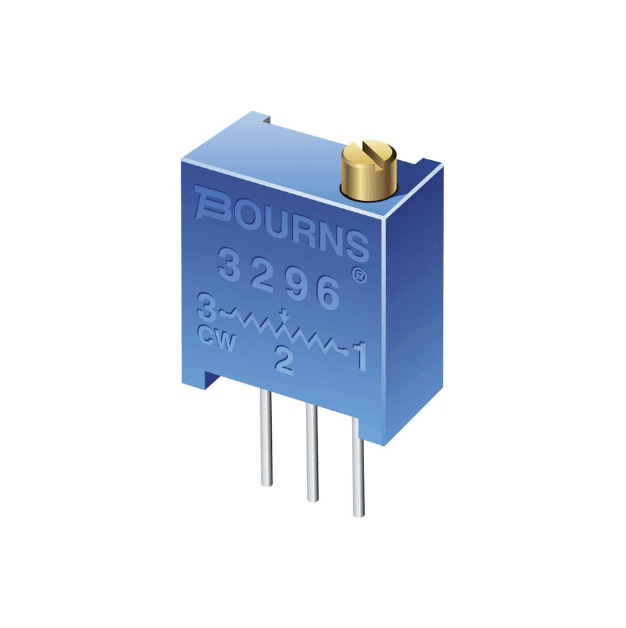

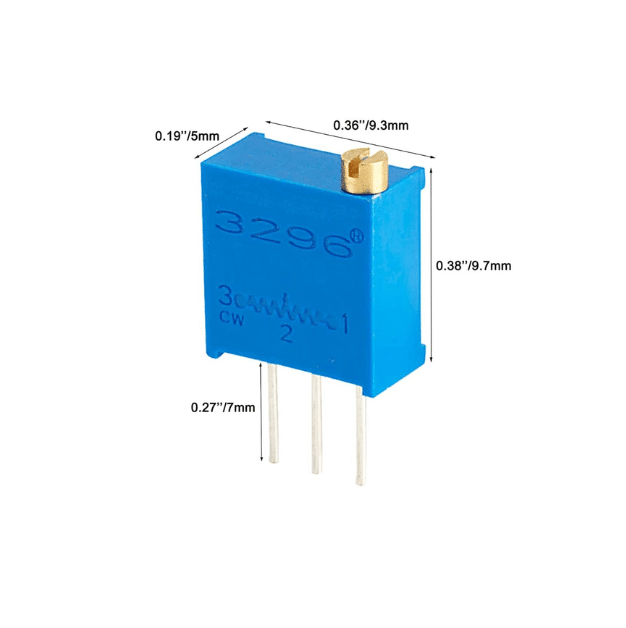

100K Ohm Multi Turn Trimpot Variable Resistor

A general-purpose, board-mountable preset, also called by other names like potentiometers, trimpots, etc., is basically just a variable resistor. Trimmer/Trimpots are high-accuracy variable resistors and PCB-mountable with 3 terminal pins. The voltage between the terminals varies as the trimpot is rotated. Variable resistors are used for varying voltage as needed in a circuit. The outer two pins are connected to Vcc and 0V, and the center pin outputs a variable voltage between 0V and Vcc as the rotary cermet is rotated. The potentiometer is easy to mount on a PCB and can be adjusted using a screwdriver. This potentiometer has a single turn, which can be used to preset a value.

Technical Specifications:

• Resistance Value: 100K ohms
• Turns: Up to 25 turns for precise adjustment
• Type: Multi-turn trimpot (trimmer potentiometer)
• Package Option: Through-hole (TH)
• Power Rating: 0.5W
• Tolerance: ±10%
• Adjustment Mechanism: Screw mechanism for fine control
• Temperature Coefficient: Ensures stable resistance over varying temperatures
• Applications: Ideal for tuning circuits, sensor adjustments, and equipment calibration

Upgrade your electronic projects with our high-quality 1K ohm multi-turn trimpot variable resistor and experience the difference in performance and accuracy.

Package Includes:

100K ohm multi turn trimpot variable resistor
