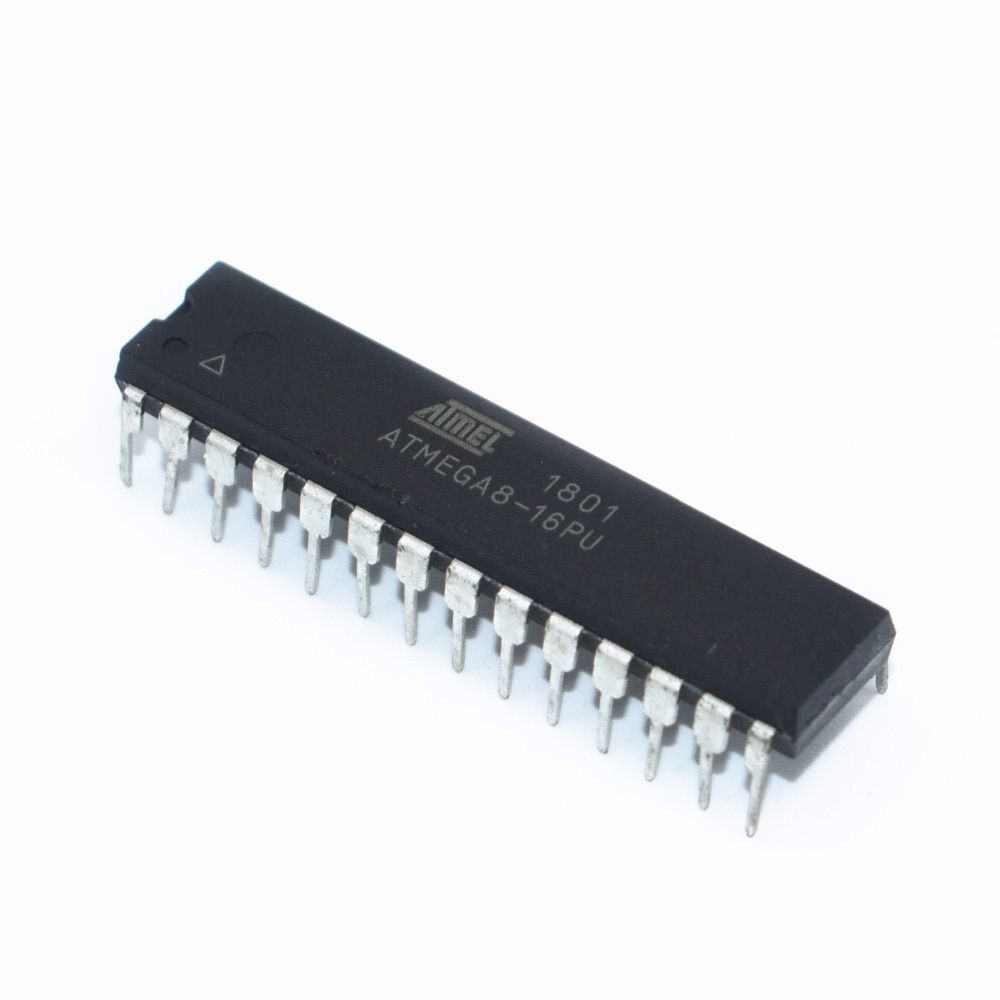

The ATmega8A-PU is a low-power, high-performance 8-bit AVR microcontroller based on the RISC architecture. With 8KB of Flash memory, 1KB of SRAM, and 512 bytes of EEPROM, this microcontroller is well-suited for embedded systems, DIY electronics, robotics, automation, and industrial control applications.
Housed in a standard DIP-28 package, the ATmega8A-PU is ideal for breadboard prototyping and through-hole PCB designs. It features rich peripherals including timers, ADC, USART, SPI, I2C, and supports in-system programming (ISP) via SPI.
Key Features
-
8-bit AVR RISC Architecture: Executes most instructions in a single clock cycle
-
In-System Programmable: Supports ISP via SPI interface
-
Peripheral Rich: Includes 10-bit ADC, timers, UART, SPI, I2C (TWI), PWM
-
Low Power Consumption: Features multiple power-saving sleep modes
-
DIP-28 Package: Perfect for breadboard and socket-based development
-
Compatible With Arduino IDE: Can be used in standalone Arduino projects with bootloader
Technical Specifications
Parameter | Value |
---|---|
Architecture | 8-bit AVR |
Flash Memory | 8KB |
SRAM | 1KB |
EEPROM | 512 Bytes |
Clock Speed (Max) | 16 MHz |
Operating Voltage | 2.7V – 5.5V |
I/O Pins | 23 |
ADC Channels | 6 (10-bit resolution) |
Communication Interfaces | SPI, I2C (TWI), UART |
Timers | Two 8-bit, One 16-bit |
Package Type | DIP-28 |
Operating Temperature Range | -40°C to +85°C |
Package Includes
-
1 × ATmega8A-PU Microcontroller (DIP-28)
