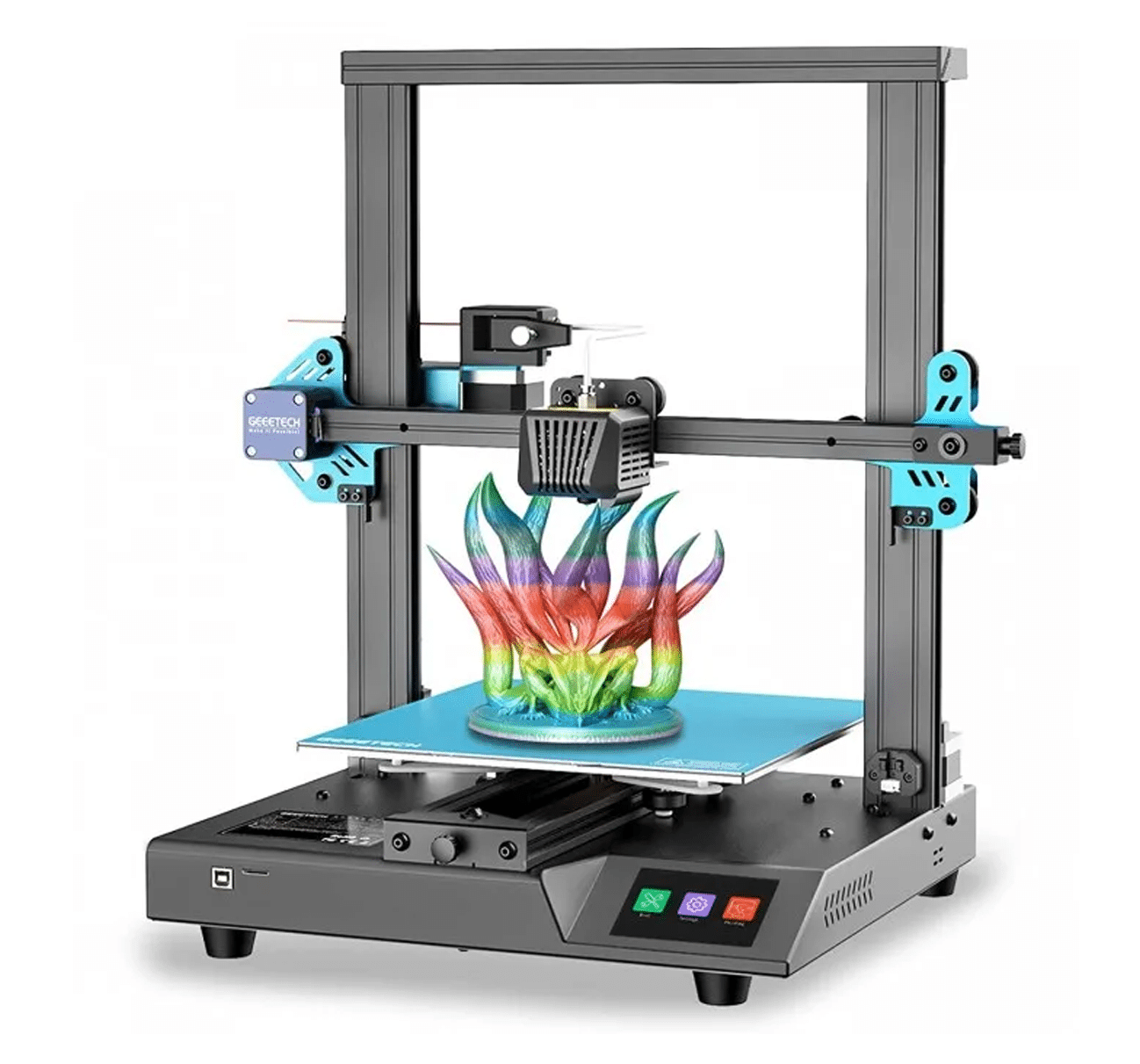

Geeetech Mizar S new printer is developed after collecting real feedback from many 3D printing users, which solves most of the printer’s pain points. Mizar S is the only printer on the market with dual leveling technology, its printing accuracy is higher and the hot bed has been fixed, so don’t worry about the hot bed being deformed or loosened. Its build volume is 255*255*260mm, and the appearance is more concise and beautiful, which can meet most of your printing needs!
【Precise Auto leveling】GEEETECH Mizar S is the only printer with the dual-leveling system, which enables one-button ABL automatic bed leveling technology. Equipped with a high-precision leveling sensor and no need for external leveling accessories like BL touch.
Mizar S also creatively designed GML manual leveling mode, which is more friendly to beginners, amateurs and specialists.

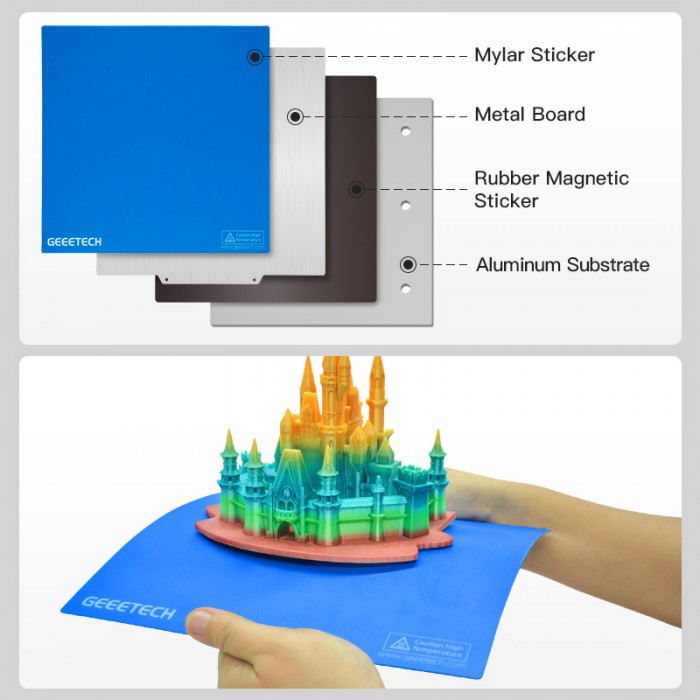

【Stable Magnetic Platform】The heat bed adopts a fully fixed design, the aluminum plate is fixed on the bracket with 12 screws, you only need to adjust the height of the nozzle when leveling, the bed won’t deform due to temp changes, which also solves the problem of unstable printing caused by loose nuts. The platform is a magnetic plate + steel sheet design, which has stronger adhesion and easier to remove the models.

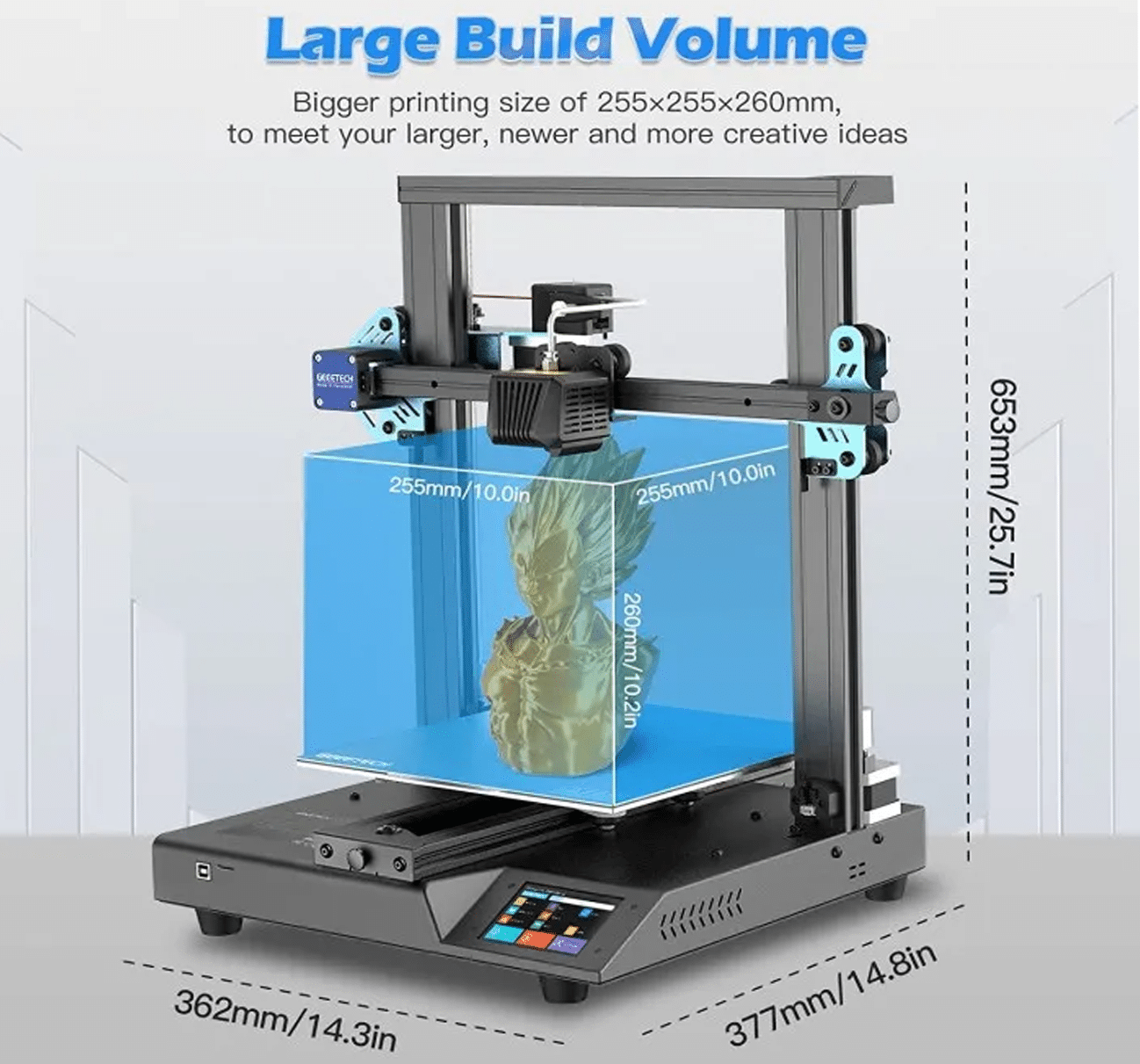

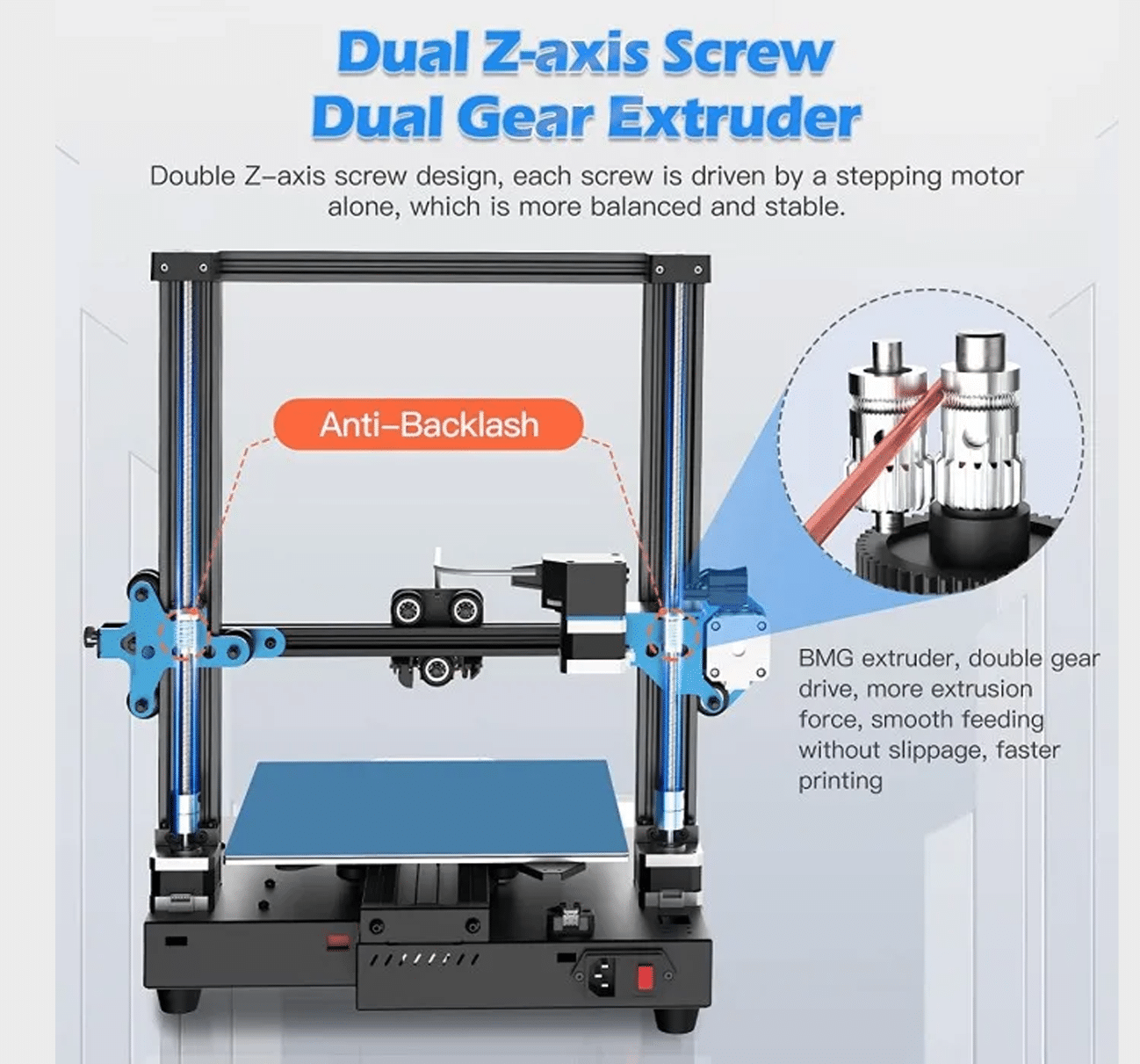

【Large Build Volume & Dual Z-axis 】GEEETECH Mizar S 3D Printer achieves a bigger print size of 255 x 255 x 260mm / 10.0 x 10.0 x 10.2 inches, giving you enough space for creative design. Double Z Axis screw design can effectively improve the printing quality and make your models more delicate.
【Super Silent Driver】The Mizar S motherboard uses a high-performance 32-bit MCU with faster printing speed. TMC2208 silent driver can effectively reduce the noise of stepper motor than Atmega2560, the printing sound doesn’t exceed 50 dBs, which will not disturb your and others work, study and rest.
【Resume Printing Function】This 3d printing machine can detect interruptions of power failure, filament run out or stuck, it will automatically pause and save the printing progress, when you handle the exception, it’ll resume the previous printing task, which gives your printing work an extra layer of protection.
Main Specification
| Printer Type | FDM |
| Layer Thickness (MM) | 0.1-0.2mm (can be set) |
| Printing Material | PLA,ABS, PETG, Silk PLA, Wood Polymer |
| Building Platform Volume (MM3): | 255*255*260mm |
| Auto-leveling: | yes |
| Break Resuming | Yes |
| Preheat time（110℃） | 7min |
| Nozzle Diameter (mm) | 0.4 |
| Nozzle Quantity | 1 |
| Positioning Precision | X axis: 0.011mm;
Y axis: 0.011mm; Z axis: 0.0025mm; |
| Printing Accuracy | ±0.1mm |
| Printing Speed | 10~150mm/S;，recommend 60~80mm/s |
| Display Screen | 3.5” Colorful Touch Screen |
| Operating System | Windows, Mac, Linux, |
| Slicing Software: | Repetier-Host, EasyPrint Lite, Cura |
| Supported File Format | .Gcode |
| Hotbed Max. Temperature (℃): | 110 ℃ |
| Extruder Max. Temperature (℃): | 250 ℃ |
| Environmental Temperature (℃): | 10-40 ℃ |
Electrical Parameter
| Power Input | 115/230V AC, 50/60Hz |
| Power Output | DC24V-15A Max, 360W |
| Connectivity Interface | 1*TF Card, 1*USB cable |
| Power Supply Unit Certification | CE, FCC,ROSH
|
Mechanical Parameter
| Printing Size: | 255*255*260mm |
| Detachable: | Yes |
| Components for standard delivery: | Figures as below |
| Net Weight (kg) | 8.9kg |
| Gross Weight(kg) | 11.2kg |
| Printer Whole Size | 362(W)*377(L)*653(H)mm |
| Packing Dimension | 522(L)*482(W)*310(H)mm |
